50HC-D08A2A6-2A0G0

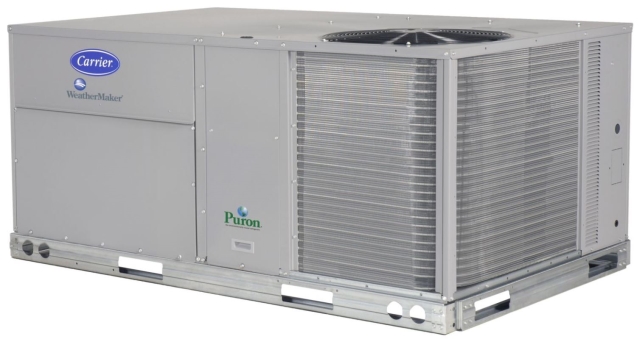

50HC = Electric Heat Packaged Rooftop
- = Standard, No Electric Heat
D = Two stage cooling models
08 = 7.5 Tons
A = No Smoke or CO₂ sensor
2 = Medium Static Option - Belt Drive
A = Al/Cu - Al/Cu
6 = 460/3/60
2 = RTU Open Multi-Protocol Controller
A = No Air Intake or Exhaust
0 = No Convenience Options
G = 2-Speed Indoor Fan (VFD) Controller
0 = Standard Packaging

Performance Features

• ASHRAE 90.1 and Energy Star compliant


• Up to 15.6 SEER, 13.0 IEER, and 12.2 EER


• Standard cooling operating range up to 125 °F (52°C) and down to 35°F (-2°C). Low ambient controllers can bring cooling operation down to -20°F (-29°C)


• Innovative non-corrosive composite condensate pan in accordance with ASHRAE 62 Standard, sloping design; side or center drain


• Pre-painted exterior panels and primer-coated interior panels tested to 500 hours salt spray protection


• TXV refrigerant metering device on each circuit with removable power element


• Fully insulated cabinet

Maintenance Features

• Control terminal board facilitating simple safety circuit troubleshooting and simplified control box arrangement


• Access panels with easy grip handles and tool-less filter access door


• Innovative, easy starting, no-strip screw feature on unit access panels


• Optional hinged access panels also available


• Belt drive evaporator-fan motor and pulley combinations available on all three phase models to meet any application


• Electric Drive x13 (5 speed/torque) motor on 04 to 06 models


• Two-inch disposable return air filters

Installation Features

• Same footprint as installed Carrier 3-5 and 7.5-10 ton rooftops back to 1989,  reducing installation costs and time


• Field convertible from vertical to horizontal airflow for slab mounting (sizes 04 to 14)


• Provisions for thru-the-bottom power entry capability as standard


• Single point gas and electric connections


• Full perimeter base rail with built-in rigging adapters and fork truck slots


• Dedicated vertical and horizontal airflow models available (factory option on size 17 to 28 units)

Reliability Features

• Scroll compressors with internal line-break overload protection


• 24-volt control circuit protected with resettable circuit breaker


• Permanently lubricated evaporator-fan motor


• Totally enclosed condenser motors with permanently lubricated bearings


• Low pressure and high-pressure switch protection


• Solid-state electronic direct spark ignition system and flame roll-out safety protector

Standard Limited Warranty

• 10 years parts only electric heater


• 5 years parts only compressor


• One year parts only on all other parts


• Extended warranty packages available
