This product is obsolete

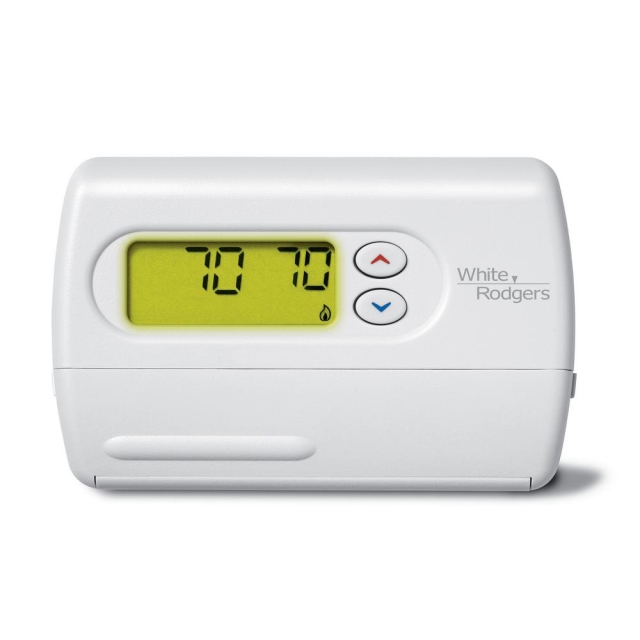

White Rodgers Non-Programmable, 1 Heat/1 Cool Thermostat
This product is obsolete
White Rodgers Non-Programmable, 1 Heat/1 Cool Thermostat
Description
Emerson Electric Co. (White-Rodgers) Classic 80 Series™ 20 to 30 VAC 50/60 Hz, 1.5 A, 1-Heat/1-Cool 1-Stage, Non-Programmable, Digital, Thermostat
Features & Benefits
- Fossil Fuel or Electric Heat Compatible
- Large LCD with Backlight
- Permanent Program Retention During Power Loss
- Configuration Menu Allows Keypad Selection of Options
- Selectable Celsius or Fahrenheit Temperature Display
- Selectable Energy Management Recovery
Specifications
- Type: Digital, Non-Programmable, 1-Heat/1-Cool 1-Stage/Heat Pump
- Cover Type: Rectangular Horizontal
- Voltage Rating: Millivolt to 30 Volt AC (Battery), 20 to 30 Volt AC 50/60 Hertz (Hardwire)
- Current Rating: 1.5 Amp
- Temperature Rating: 32 to 105 Deg F
- Size: 6 Inch Width x 1-3/16 Inch Depth x 3-7/8 Inch Height
- Approval: UL, CSA, AHRI, ACCA, ISO 9001, NEC Class 2
- Terminal Designation RC, RH, C, W, Y, O, B, G
- Set Point Temperature Rating 45 to 99 Deg F
- Humidity Rating 90 Percent
- Application Gas/Oil/Electric System
Documents
There are no documents available.
Specifications
- BrandWhite Rodgers
- Built In Wi-FiFalse
- Digital ProgrammableNon-Programmable
- Power MethodBattery Or Hardwired
- Stages1 Heat/1 Cool
- Support Capacitive TouchFalse
- Amps1.5
- ApplicationHeat/Cool, Heat Pump
- BacklitTrue
- Batteries IncludedTrue
- DisplayLCD
- Height1.1875 in
- Length3.875 in
- Parts ApplicationStd heat/Cool
- Temperature Range45 To 90
- UL ListedFalse
- UL RecognizedFalse
- Voltage24
- Width6 in
