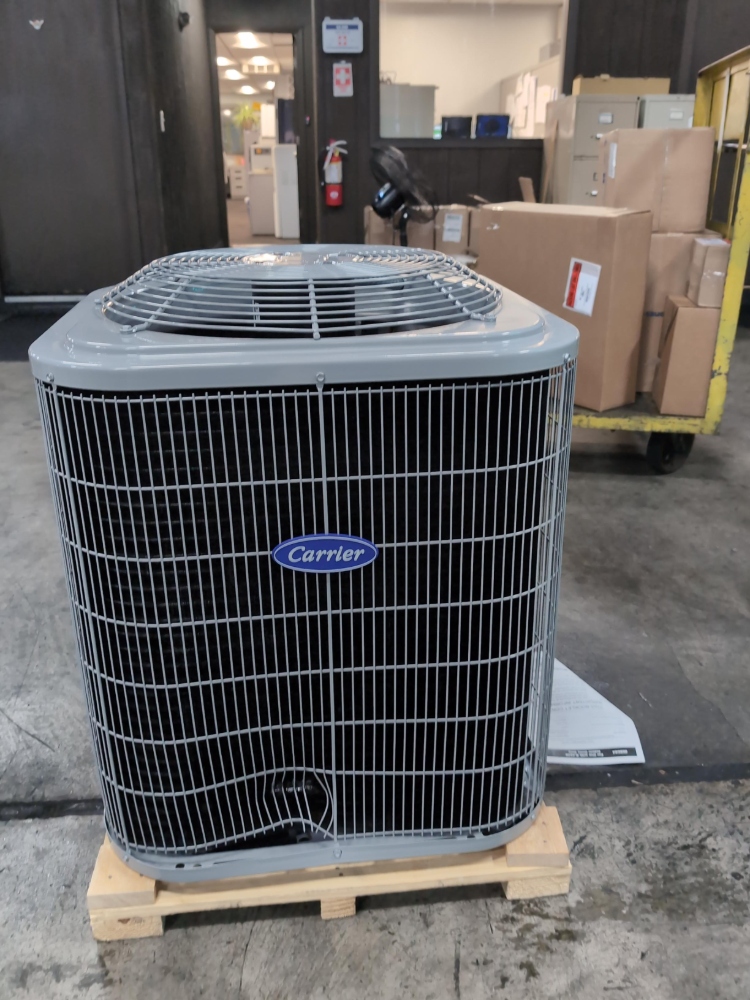

14S AC 2.0T CMFT R454B PUR ADV 208/230-1

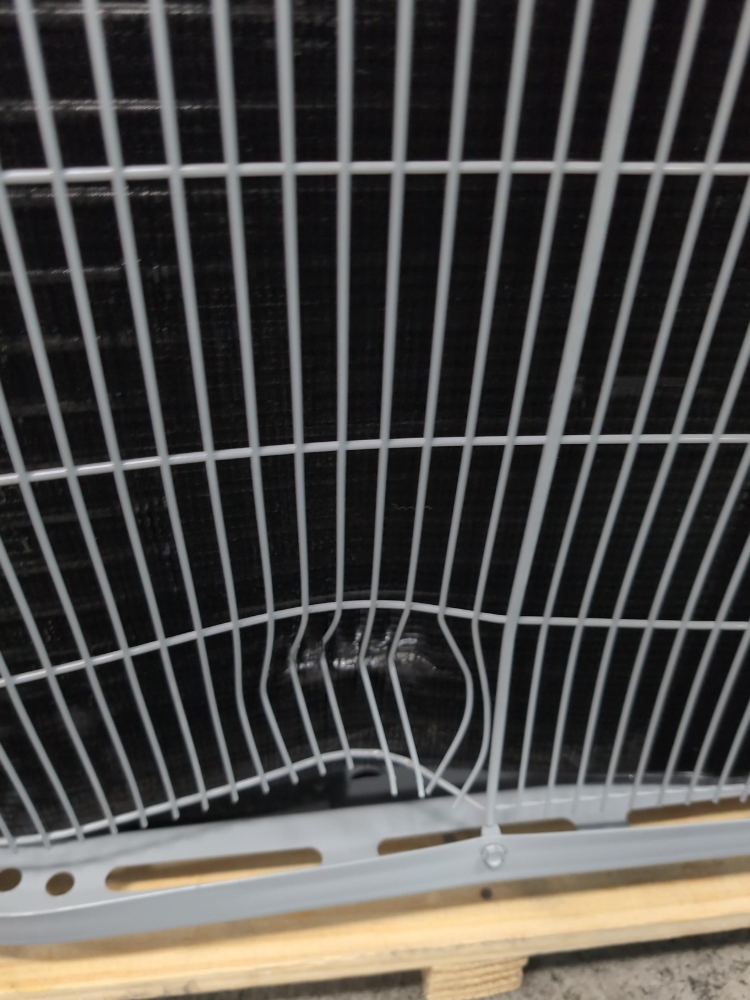

Description: FORK BLADE DAMAGE TO THE INLET GRILL AND COIL ON THE LOWER FRONT
RETURN POLICY No return or exchange
Scratch and Dent products are final sale and will be held for a maximum of 48 hours
Damaged - Good Condition
14S AC 2.0T CMFT R454B PUR ADV 208/230-1
Description: FORK BLADE DAMAGE TO THE INLET GRILL AND COIL ON THE LOWER FRONT
RETURN POLICY No return or exchange
Scratch and Dent products are final sale and will be held for a maximum of 48 hours
Description
Scratch and dent productDescription: FORK BLADE DAMAGE TO THE INLET GRILL AND COIL ON THE LOWER FRONT
26SCA424N003
26S = Air Conditioner with Puron Advance Refrigerant Single Stage
C = Comfort
A = Initial
4 = 13.4 SEER2
24 = 24,000 Btuh
N = Standard North AC
0 = Not Defined
0 = Not Defined
3 = 208/230 ---1
Standard Features
- 13.4 SEER2 cooling efficiency
- Field Installed Filter Drier
- Front Seating Service Valves
- Internal Pressure Relief Valve
- Internal Thermal Overload
- Long Line Capability
- Low Ambient Capability with Kit
- 10-year parts limited warranty
1See warranty certificate for complete details
Specifications
- BrandCarrier
- CoastalFalse
- ConfigurationVertical
- FamilyComfort
- Gas Stages1-Stage
- Line Voltage (60Hz)240V
- RefrigerantR454B
- Scratch and Dent GradeDamaged - Good Condition
- Suction Line Size3/4"
- Tonnage2
- Voltage (Phase)208/230 V 1-Phase
- Coil Guard TypeGrill
- CommunicatingFalse
- Compressor RLA9.2
- Compressor TypeScroll
- Condenser Motor HP1/10
- Condenser Motor RPM1100 rpm
- Condenser Motor TypePropeller Type, Direct Drive
- Frequency60
- Height32 1/16" in
- High PressureFalse
- High Pressure SwitchFalse
- InverterFalse
- LEED CertifiedFalse
- Length25 3/4" in
- Liquid Line FittingSweat
- Liquid Line Size3/8" in
- Liquid Line Size3/8"
- Low PressureFalse
- Low Pressure SwitchFalse
- LRA59
- Maximum Circuit Breaker20
- Maximum Piping Length250
- Maximum Voltage253
- MCA12
- Metering DeviceTXV
- Minimum Voltage197
- Motor Phase1
- Number Of Fan Blades2
- Outdoor Coil MaterialTube
- Outdoor Fan Motor FLA0.6
- Outdoor FPI25
- Outdoor Number of Rows1
- Shipping Height33.75 in
- Shipping Length26.75 in
- Shipping Weight140 lb
- Shipping Width26.75 in
- Sound BlanketFalse
- Sound BlanketFalse
- Suction Line FittingSweat in
- Suction Line Size3/4"
- UL ListedFalse
- UL RecognizedFalse
- Voltage208/230-1
- Weight120 lb
- Width25 3/4" in
Equipment Parts List
There is no data available for this product
