Features & Benefits

• Designed to Support Non-Insulated, Stationary Lines from Above, Allowing for Approximately 1 to 1-1/2" of Vertical Adjustment after the Pipe is in Place
• The Lower Nut (Not Furnished) Adjusts the Pipe Line to the Proper Elevation, the Top Nut (Not Furnished) Prevents Loosening Due to Vibration and Must be Tightened Securely to Assure Proper Hanger Performance

Specifications

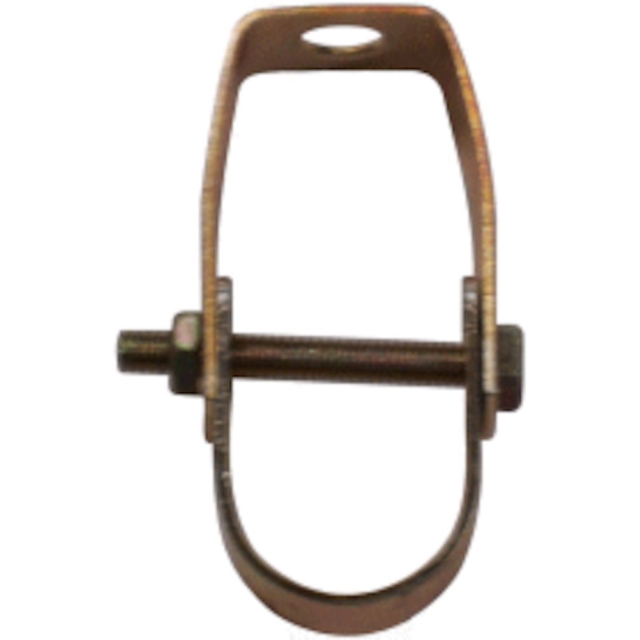

• Type: U, Adjustable Clevis
• Minimum Pipe Size: 2 Inch
• Maximum Pipe Size: 2 Inch
• Hanger Mounting Size: 3/8 Inch
• Height: 4-5/8 Inch
• Material: Carbon Steel
• Finish: Gold Galvanized
• Load Rating: 610 Pound
• Temperature Rating: 650 Deg F
• Applicable Standard: Federal Specification A-A-1192A Type 1, MSS SP-69 Type 1, BSPSS-BS3974, FM, UL
Rod Take Out Size 3-1/8 Inch
