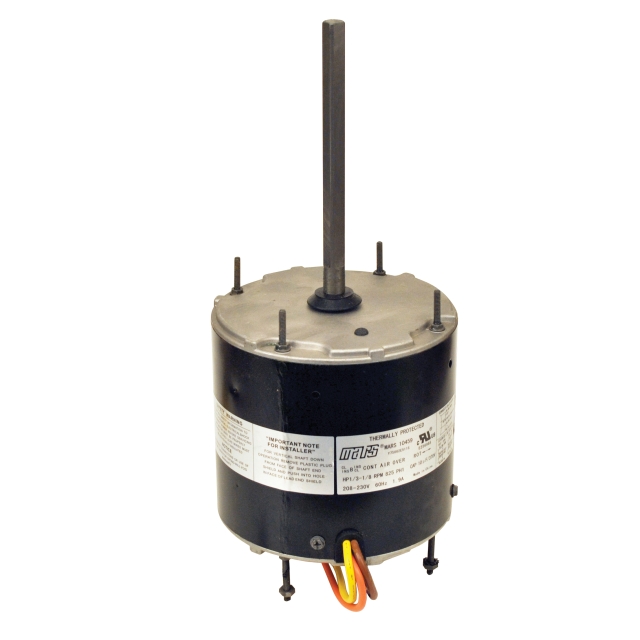

Condenser Fan Motor, 5-1/2" 1/5-1/2hp 208/230V 1075/2 TEAO
Condenser Fan Motor, 5-1/2" 1/5-1/2hp 208/230V 1075/2 TEAO
Description
Mars Motors & Armatures, Inc. 1/5 to 1/2 HP, 208 to 230 VAC 60 Hz 1 Phase, 3.6 A, 1075 RPM, 2-Speed, Reversible, Class B Insulation, Ball Bearing, All Angle Mount, TEAO, Multi-Horsepower Condenser Fan Motor
Features & Benefits
- MARS Multi-Horsepower Condenser Fan Motors are Ideal for Truck Stock
- Rheem Mounting Hole with Screw Installed
- Water Slinger on Shaft
- Thermal Overload Protected
- Through Bolt or Band Mounting
Specifications
- Enclosure Type: TEAO
- Power Rating: 1/5 to 1/2 HP
- Voltage Rating: 208 to 230 Volt AC 1-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 3.6 Amp
- Number of Speeds: 2
- Speed Rating: 1075 RPM
- Reversible: Yes
- NEMA Frame Size: 48
- Insulation Class: B
- Mounting: All Angle
- Application: HVAC/R, Air Conditioner, Heat Pump
- Approval: UL, CUL
- Type Permanent Split Capacitor
- Bearing Type Ball
- Diameter 5-1/2 Inch
- Shaft Size 1/2 Inch Diameter x 5 Inch Length
- Lead Length 38 Inch
- Ambient Temperature Rating 60 Deg C
- Excludes Capacitor
Documents
Specifications
- BrandMARS
- Bearing TypeBall
- Enclosure TypeTotally Enclosed Air Over (TEAO)
- Frame Size48
- HP1/5-1/2
- Insulation ClassClass B
- Motor Thermal ProtectionAuto
- Number of Speeds2
- RotationClockwise, Counter Clockwise
- RPM Range1001-1100
- Shaft Diameter1/2
- Shaft PositionAll Angle, Horizontal, Vertical Shaft Down, Vertical Shaft Up
- TypeCondenser Fan Motor
- VarietyPSC
- Voltage208/230V
- Ambient60 °C
- Frequency60Hz
- Full Load Amps3.6
- Motor Phase1
- Motor RPM1075
- Run Capacitor10/12.5/370
- Shaft Length5 in
- UL ListedFalse
- UL RecognizedFalse
