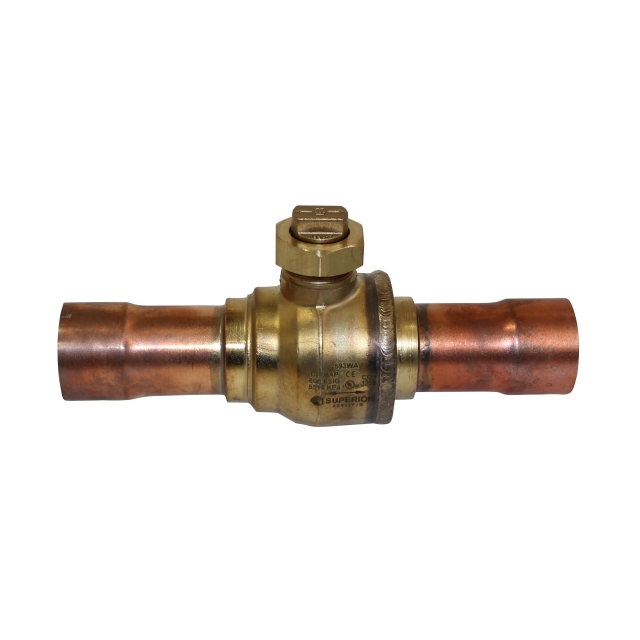

Ball Valve, WA Series 1-5/8" ODS 1.50" Dia
Ball Valve, WA Series 1-5/8" ODS 1.50" Dia
Description
Integra-Seal® Ball Valve
- Full refrigeration service temperature range:-40° to +325°F
- Forged brass body and steel cap
- Design working pressure: 500 psig
- No synthetic O-ring seals
- Polished brass or chrome platedsteel ball
WA Series (Welded)
Specifications
- BrandSherwood Superior
- ApplicationRefrigeration
- Body MaterialBrass
- Inlet Connection Size1-5/8" in
- Outlet Connection Size1-5/8" in
- StyleBall Valve
- TypeShutoff Valve
- Description from Carrier1 5/8 ODS Superior Ball Valve
- Height4.2 in
- Length9.13 in
- Maximum Working Pressure800 PSIG
- Shipping Height3.78 in
- Shipping Length4.803 in
- Shipping Point37406
- Shipping Weight4.1 lb
- Shipping Width11.5748 in
- TypeBall Valve
- UL ListedFalse
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedFalse
- Weight3.805 lb
- Width2.8 in
