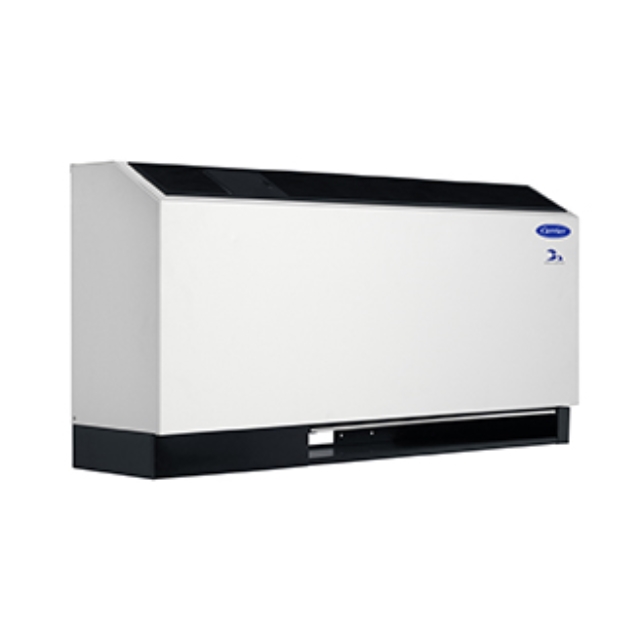

1.5-Ton Console Water Source Heat Pump R410A 208/230V-1, Right Return, Top/Bottom Discharge
This product is obsolete
1.5-Ton Console Water Source Heat Pump R410A 208/230V-1, Right Return, Top/Bottom Discharge
Description
50PEC18AXLE3E1A1
50PEC = AquazoneTM High Efficiency Water Source Heat Pump - Console Unit (R410A)
18 = 1.5 Ton Capacity
A = Right Hand Water Connection, 5/8 in Sweat Connection
X = Standard 48 in Cabinet and Sub-base
L = Complete C Package with Remote Mounted Thermostat
E = Copper Epoxy Coated Evaporator Coil
3 = 208/230-1-60
E = Current Revision
1 = Domestic Packaging
A = Extended Range
1 = Cleanable Mesh Filter
Specifications
- BrandCarrier
- Compressor Quantity1
- Compressor Stage1
- Discharge ConfigurationTop/Bottom
- FeaturesStandard Range
- Line Voltage (60Hz)240V
- RefrigerantR410A
- Refrigerant TypeR-410A
- Return ConfigurationRight
- Tonnage1.5
- TypeConsole
- Water Connection Size FTP (in)3/4"
- WSHP Filter Size7" x 31-1/4"
- Condenser Motor TypePermanent Split Capacitor
- Height23 7/8" in
- Length48" in
- Motor Phase1
- Rated Voltage208/230V
- Shipping Height24 in
- Shipping Length50 in
- Shipping Weight164 lb
- Shipping Width14 in
- Voltage208/230-1
- Weight144 lb
- Width12" in
Equipment Parts List
There is no data available for this product
