Factory Authorized Part

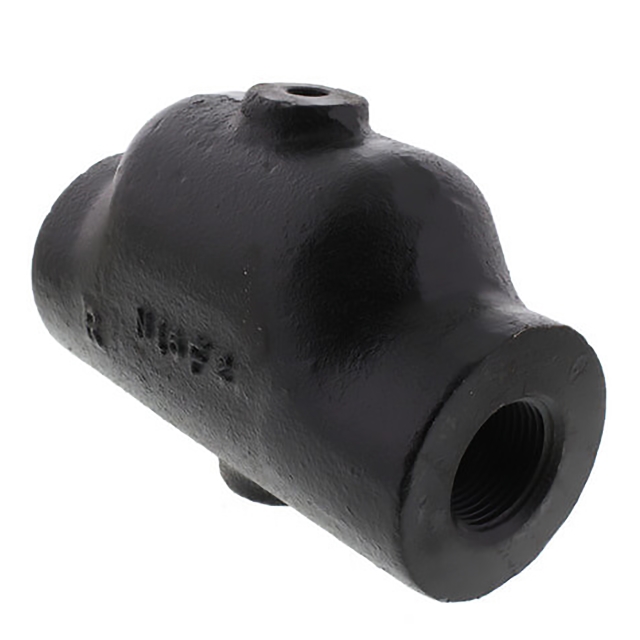

1" AIR PURGER 125 PSI

SKU:AP400
Factory Authorized Part

1" AIR PURGER 125 PSI

SKU:AP400

    Description

    • Heavy Duty cast iron construction
    • 1 inch, 1-1/4 and 1-1/2 inch models (inlet and outlet)
    • 1/2 inch bottom tapping for expansion tank mount
    • 1/8 inch top tapping for air vent mount
    • Directional flow arrow for correct installation

      • Air Purgers provide efficient separation of air and water in hydroinc heating systems.
      • Heavy duty cast iron construction with tappings for expansion tank and automatic air vent mountings.
      • Removes entrapped air with internal baffle design through continuous recirculation of heating system water with use of air vent.
      • Improves system efficiency, reduces noise and helps extend component life.

          • Specifications Description: 1 in. NPT Air Purger for closed heating systems
          • Application: Closed heating systems
          • Connection Type: Female NPT
          • Connection Size (inch): Bottom: 1/2 inch; Top: 1/8 inch
          • Pipe Size: 1"
          • Max Safe Operating Pressure: 125 psi
          • Max Operating Temperature (F): 275 F
          • Dimensions: 6 inch long x 3-3/4 inch high x 2-3/8 inch wide
          • Materials: Cast Iron

    Documents

    There are no documents available.

    Specifications

    • BrandFactory Authorized Part
    • Shipping Height3.5 in
    • Shipping Length6.5 in
    • Shipping Weight4.3 lb
    • Shipping Width4.5 in
