1 TON TXV
1 TON TXV
Description

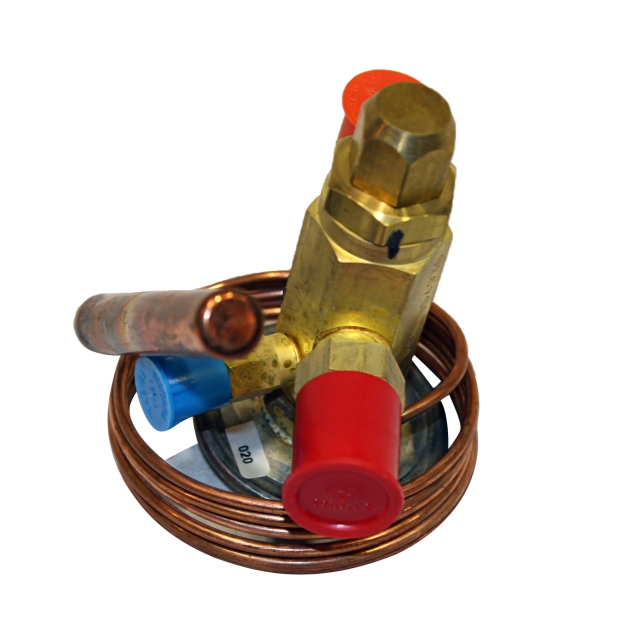

Emerson Electric Co. (White-Rodgers) 1 Ton, 3/8" x 1/2", SAE Flare x SAE Flare, 450 PSI, Stainless Steel, C-Charger, Angle, Bi-Directional, Externally Equalizer, Medium Temperature, Thermostatic Expansion Valve
Features & Benefits
- Stainless Steel Replaceable Power Assembly Eliminate Corrosion and Prevent Valve Failure
- Two Body Size Provide Capacity from 1/4 to 20 Ton
- Bodies, Cages and Power Assemblies can be Ordered Separately or in Pre-Packaged Service Kits
- Bi-Directional Capability up to 3-1/2 Tons for R-22 on One Valve Superheat Control in Cooling and Heating
Specifications
- Type: Balanced Port Design, Bi-Directional, Adjustable Superheat, Standard Body, 90 Degree
- Nominal Size: 3/8 Inch x 1/2 Inch
- End Connection: SAE Flare x SAE Flare
- Pressure Rating: 450 PSIG
- Inclusions/Features: External Equalizer, Stainless Steel Power Assembly
- Exclusions: Bleed Hole
- Application: Refrigerant, Air Conditioner and Heat Pump
- Applicable Standard: UR/CUR, CRN Capillary Tube Length 5 Foot; Refrigerant Type R-22/R-407A; Capacity 2-1/2 Ton; Charge Code Medium Temperature
Replacement for
Specifications
- BrandFactory Authorized Part
- Equalizer LocationInternal
- RefrigerantR22, R407C
- TXV Charge CodeHC
- TXV Connection TypeFlare (SAE)
- TXV Inlet Size3/8"
- TXV Outlet Size1/2"
- TXV SeriesHFE HFES
Equipment Parts List
There is no data available for this product
