1 TON TXV
1 TON TXV
Description

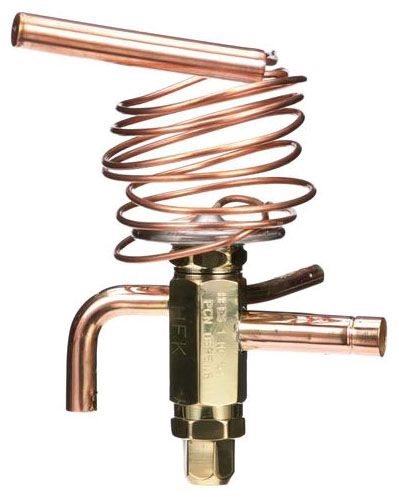

Emerson Electric Co. (White-Rodgers) 3/8" x 1/2", ODF Soldered x ODF Soldered, 1 Ton Capacity, 450 PSIG, R-12, Medium Temperature, Balanced Port Design, Bi-Directional, Adjustable Superheat, Standard Body, 90D, Refrigerant Thermostatic Expansion Valve with External Equalizer and 5 ' Capillary Tube
The HF Series is a balanced ported valve designed for refrigeration, air conditioning and heat pump applications.
Features & Benefits
- Balance Port Design Provide Perfect Pin and Port Alignment and Prevent Pressure Drop Across the Valve from influencing Valve Operation
Specifications
- Type: Automatic, Balanced Port, Adjustable Superheat
- Nominal Size: 1/2 Inch x 7/8 Inch
- End Connection: ODF x ODF
- Body Material: Brass Bar Stock
- Temperature Rating: -40 to 60 Deg F
- Pressure Rating: 450 PSI
- Inclusions/Features: 1/4 Inch ODF External Equalizer, 100 Mesh Insert Strainer
- Application: Small Chiller, Air Conditioner, Freezer, Walk-in Box, Refrigerant Case, Mobile Refrigerant Capillary Tube Length 60 Inch; Refrigerant Type R-22; Refrigerant Color Green; Capacity 5 Ton; Charge Code Maximum Operating Pressure, Pressure Limiting
Specifications
- BrandFactory Authorized Part
- Configuration90° Angle
- Equalizer LocationExternal
- RefrigerantR12
- TXV Charge CodeFC
- TXV Connection TypeSweat (ODF)
- TXV Inlet Size3/8"
- TXV Outlet Size1/2"
- TXV SeriesHFESC
- Rated Capacity Primary Refrigerant1
- Shipping Height4 in
- Shipping Length7 in
- Shipping Point37406
- Shipping Weight1 lb
- Shipping Width5 in
