This product is obsolete

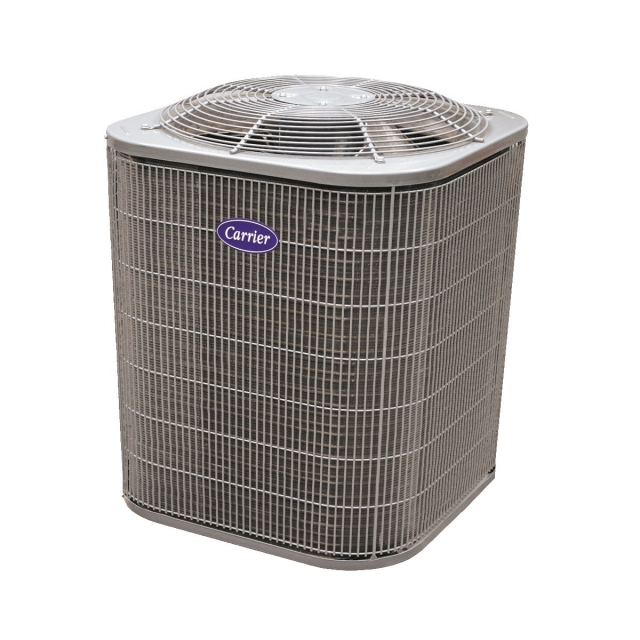

14 SEER AC 5.0T ALUM COI 208/230-1
This product is obsolete
14 SEER AC 5.0T ALUM COI 208/230-1
Description
CA14NA06000L
CA14 = 14 SEER Air Conditioner with Puron Refrigerant
N = 208/230–60–1
A = Puron
060 = 60,000 Btuh
00L = Dense Grille
Documents
Specifications
- BrandWeathermaker
- CoastalFalse
- Compressor Stage1
- ConfigurationVertical
- Cooling Capacity56500
- Gas Stages1-Stage
- RefrigerantR410A
- Tonnage5
- Voltage (Phase)208/230 V 1-Phase
- Air FlowVertical
- Coil Guard TypeGrill
- CompressorScroll
- Compressor RLA20.8
- Compressor TypeScroll
- Condenser Motor HP1/4
- Condenser Motor Phase1
- Condenser Motor RPM1100 rpm
- Condenser Motor TypePermanent Split Capacitor
- Frequency60
- Height28.25 in
- High PressureFalse
- High Pressure SwitchTrue
- InverterFalse
- LEED CertifiedFalse
- Length31.19 in
- Liquid Line FittingSweat
- Liquid Line Size3/8
- Low PressureFalse
- Low Pressure SwitchTrue
- LRA127.1
- Max Sound Level75
- Maximum Circuit Breaker40
- Maximum EER12
- Maximum Piping Length250
- Maximum SEER14.5
- Maximum Voltage253
- MCA28
- Metering DeviceTXV
- Minimum EER11.5
- Minimum Heating Ambient Temperature-20
- Minimum SEER14
- Minimum Voltage197
- Motor Phase1
- Number Of Fan Blades2
- Outdoor Fan Motor FLA1.52
- Outdoor FPI20
- Outdoor Number of Rows2
- SEER14
- Shipping Height29.88 in
- Shipping Length32.19 in
- Shipping Weight200 lb
- Shipping Width32.19 in
- Sound BlanketFalse
- Sound BlanketFalse
- Suction Line FittingSweat in
- Suction Line Size1 1/8
- UL ListedFalse
- UL RecognizedFalse
- Voltage208/230-208/240-1-60
- Weight182 lb
- Width31.19 in
Equipment Parts List
There is no data available for this product
