Features & Benefits

• Multi-function micro-processor board
• Cooper tube/aluminum fin heating and cooling coils
• Blower door shut-off
• Separate compartment for drain connections
• Drain pan has 3/4" female primary and secondary fittings
• Higher efficiency cooling coil with piston-type metering
• Device (contact factory for correct indoor/outdoor match)
• Convenient equalizer connection for field or factory installed R410A TXV (non-bleed type)
• Circulating pump with unique, easy access anti-syphon check valve and air purge valve
• Easily accessible 1" filter
• Cabinet air leakage is no more than 2% when tested in accordance with ASHRAE 193

Specifications

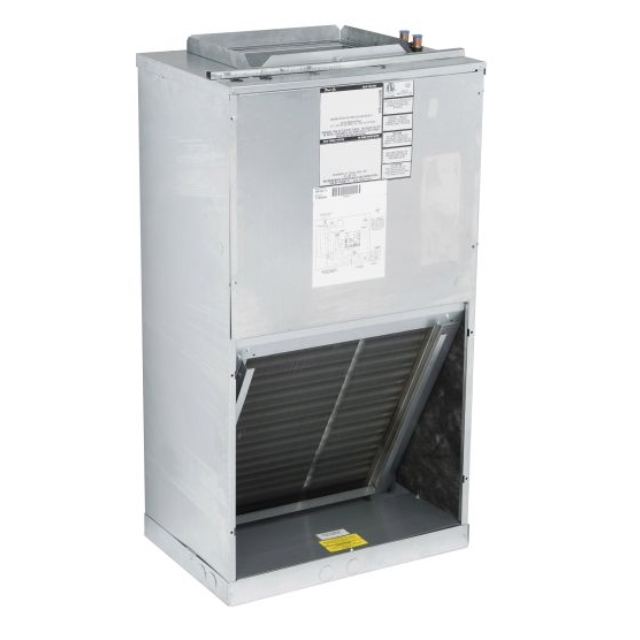

• Type: Up Flow, Wall/Closet, Factory Installed R-410 Thermal Expansion Valve
• Voltage Rating: 120 Volt (Motor), 24 Volt (Control)
• Current Rating: 5.4 Amp (Motor), 0.57 Amp (Pump), 8 Amp (MCA), 15 Amp (Fuse)
• Power Rating: 1/3 HP (Motor)
• Temperature Control Type: Thermostat
• Size: 22-1/8 Inch Width x 18 Inch Depth x 43 Inch Height
• Approval: ETL (Canada and US)
• Heating Capacity 24000 BTU/Hour
• Filter Size 18 Inch x 18 Inch
• Liquid Line Size 3/8 Inch Outer Diameter
• Suction Line Size 5/8 Inch Outer Diameter
• Air Flow Rating 840 CFM (High), 770 CFM (Medium to High), 690 CFM (Medium to Low) at 0.1 Inch WC
