Newman

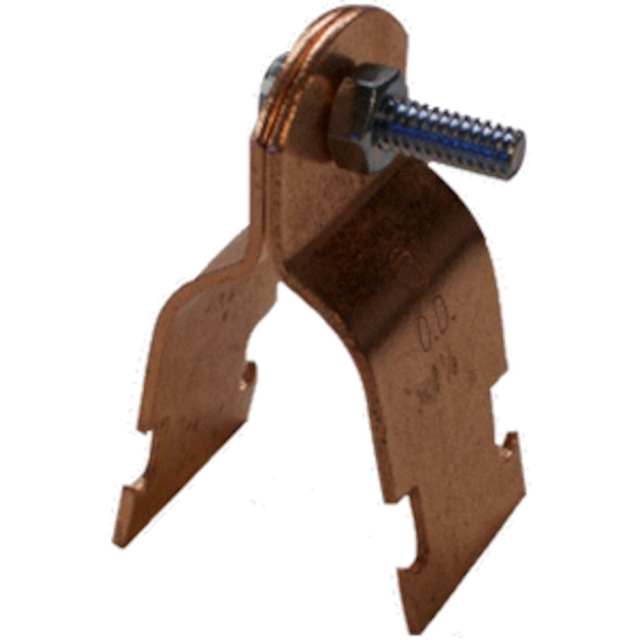

Tubing Pipe Clamp, 2-3/8"OD GoldGalv

SKU:238SCMFG:701-238
Newman

Tubing Pipe Clamp, 2-3/8"OD GoldGalv

SKU:238SCMFG:701-238

    Description

    ABB Installation Products Inc. (Superstrut) 2-3/8", 1300 Lb Load Rated, Gold Galvanized, 12 Gauge Steel, Tubing to Strut, Pipe Strap

    Features & Benefits

    • Single Coil Family Fits All Valve Sizes
    • Can be Brazed into the Line without Disassembly
    • PTFE Diaphragm for High Temperature Applications
    • Extended Ends for Easy Installation
    • Mounting Stud Models can be Field Converted to Manual Stem
    • Long-Life Molded Coils

    Specifications

    • Type: 2-Way, Diaphragm, Manual Stem
    • Port Connection: 1/2 Inch x 1/2 Inch
    • Valve Position: NC
    • Temperature Rating: 250 Deg F
    • Pressure Rating: 500 PSIG (Maximum Working Pressure), 300 PSIG (Maximum Operating Pressure Differential)
    • Media Handled: Liquid, Suction/Hot Gas
    • Applicable Standard: UL, CUL, CRN
    • Connection Size 5/8 Inch ODF Extended End x 5/8 Inch ODF Extended End; Excludes Coil

    Specifications

    • BrandNewman
    • Hanger Size2-3/8"
    • Hangers TypeClamps
    • Shipping Height4.25 in
    • Shipping Length5 in
    • Shipping Weight0.3363 lb
    • Shipping Width8.5 in
