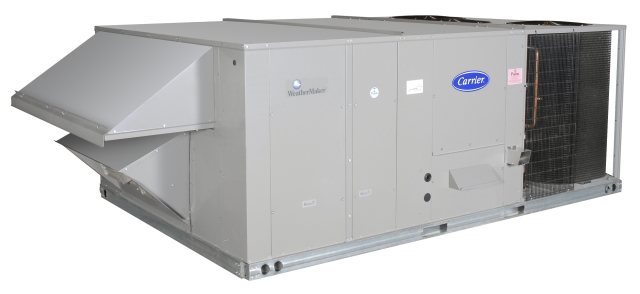

20.0T G/E RTU PURON 208/230-3
This product is obsolete
20.0T G/E RTU PURON 208/230-3
Description
48TCED24A2A5-0A0G0
48TC = Gas Heat Packaged Rooftop
E = Medium Heat
D = Two Stage Cooling Models
24 = 20 Tons
A = No Smoke or CO2 sensor
2 = Medium Static/Vertical Supply, Return Air Flow
A = Al/Cu - Al/Cu
5 = 208-230/3/60
0 = Electro-mechanical Controls. Can be used with W7212 EconoMi$er IV (Non-Fault Detection and Diagnostic)
A = No Air Intake or Exhaust
0 = No Convenience Options
G = 2-Speed Indoor Fan (VFD) Controller
0 = Standard Packaging
48TC = Gas Heat Packaged Rooftop
E = Medium Heat
D = Two Stage Cooling Models
24 = 20 Tons
A = No Smoke or CO2 sensor
2 = Medium Static/Vertical Supply, Return Air Flow
A = Al/Cu - Al/Cu
5 = 208-230/3/60
0 = Electro-mechanical Controls. Can be used with W7212 EconoMi$er IV (Non-Fault Detection and Diagnostic)
A = No Air Intake or Exhaust
0 = No Convenience Options
G = 2-Speed Indoor Fan (VFD) Controller
0 = Standard Packaging
Specifications
- BrandCarrier
- BTU Input248000
- Gas Stages2-Stage
- Heat SizeMedium Gas Heat
- Line Voltage (60Hz)240V
- RefrigerantR410A
- Tonnage20
- Air FlowVertical
- Blower Motor TypeVFD
- CertificationsAHRI
- Efficiency81
- Heating Capacity251
- Height47.75 in
- Length86.375 in
- Metering DeviceAcutrol
- Motor HP1/4
- Motor Phase3
- Motor Quantity4
- Motor RPM1100
- Ra Filter Quantity6
- Ra Filter Size20 X 25 X 2
- Rows1
- Second Stage0
- Shipping Height49.39 in
- Shipping Length141.5 in
- Shipping Weight2072 lb
- Shipping Width86.39 in
- Total Power24.7
- UL ListedFalse
- UL RecognizedFalse
- Voltage208/230-3
- Weight2325 lb
- Width141.5 in
Equipment Parts List
There is no data available for this product
