Baldor

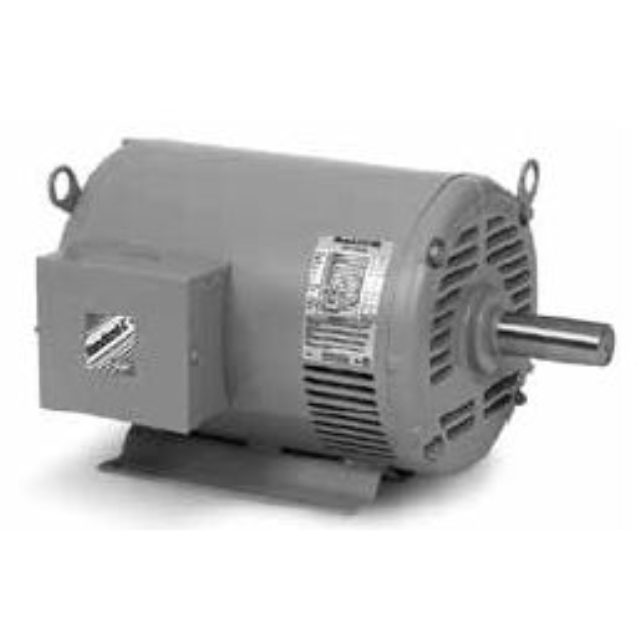

20HP 1800RPM 230/460V ODP

SKU:HM9239T
Baldor

20HP 1800RPM 230/460V ODP

SKU:HM9239T

    Description

    ABB Motors and Mechanical Inc. (Baldor-Reliance) 20 HP, 230/460 VAC 60 Hz 3-Phase, 48/24 A, 1760 RPM, B Insulation, Steel 256T Frame, F1 Mount Arrangement, Reversible, 4-Pole, 1-Speed, ODP, General Purpose AC Motor

    Specifications

    • Enclosure Type: ODP
    • Power Rating: 20 HP
    • Voltage Rating: 230/460 Volt AC 3-Phase
    • Frequency Rating: 60 Hertz
    • Motor FLA: 47 Amp at 230 Volt AC, 23.5 Amp at 460 Volt AC
    • Number of Speeds: 1
    • Speed Rating: 3510 RPM
    • Reversible: Yes
    • Service Factor: 1.15
    • Efficiency: 91 Percent
    • NEMA Frame Size: 256T
    • Insulation Class: F
    • Frame Material: Steel
    • Application: General Purpose
    • Overall Length 21.69 Inch; Motor Type 3928M; Base Indicator Rigid; Mounting Arrangement F3; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 2; Power Factor 88; Temperature Rating 40 Deg C

    Specifications

    • BrandBaldor
    • HP20
    • Line Voltage (60Hz)480V
    • TypeBlower Motor
    • Shipping Weight195 lb
    • UL ListedFalse
    • UL RecognizedFalse
