20HP 1800RPM 230/460V TEFC
20HP 1800RPM 230/460V TEFC
Description

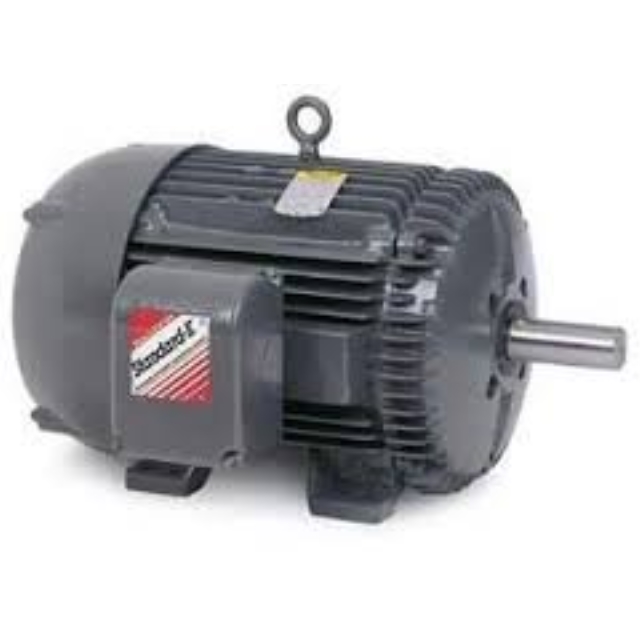

ABB Motors and Mechanical Inc. (Baldor-Reliance) 20 HP, 230/460 VAC 60 Hz 3-Phase, 50/25 A, 1760 RPM, F Insulation, Iron 256T Frame, F1 Mount Arrangement, Reversible, 4-Pole, 1-Speed, TEFC, IP44, General Purpose AC Motor
Specifications
- Enclosure Type: TEFC
- Power Rating: 20 HP
- Voltage Rating: 230/460 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 48 Amp at 230 Volt AC, 24 Amp at 460 Volt AC
- Number of Speeds: 1
- Speed Rating: 1760 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 91.7 Percent
- NEMA Frame Size: 256T
- Insulation Class: F
- Frame Material: Iron
- Application: General Purpose Overall Length 23.28 Inch; Motor Type 0944M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 4; Power Factor 85; Temperature Rating 40 Deg C
Specifications
- BrandBaldor
- HP20
- Line Voltage (60Hz)480V
- TypeBlower Motor
- Shipping Weight240 lb
- UL ListedFalse
- UL RecognizedFalse
