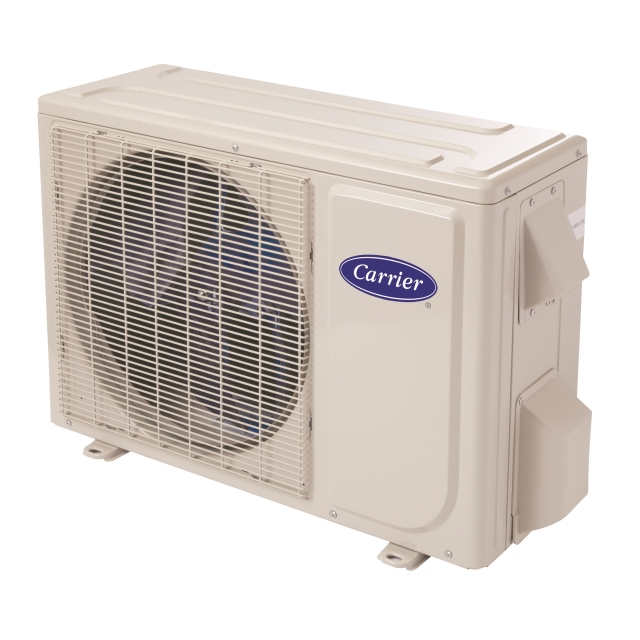

23S 9K HP DLS VAR SPEED 115-1 PERFORMANCE
This product is obsolete
23S 9K HP DLS VAR SPEED 115-1 PERFORMANCE
Description
38MAQB09---1
38 = Outdoor Unit
MA = Model
Q = Heat Pump
B = Single Zone
09 = 9,000 BTU
- = Not Used
-- = Not Used
1 = 115V - 1 - 60
38 = Outdoor Unit
MA = Model
Q = Heat Pump
B = Single Zone
09 = 9,000 BTU
- = Not Used
-- = Not Used
1 = 115V - 1 - 60
Standard Features
- Inverter Driven Compressor
- Low Sound Levels
- Fast Installation
- Built in self diagnostic system
- Factory Installed Basepan Heater
- Factory Installed Crankcase Heater
- Auto-Restart Function
- Condenser High Temp Protection
- Refrigerant Leak Detection
- Blue Fin Coating Technology
Specifications
- BrandCarrier
- Cooling Capacity11000, 3500
- FamilyPerformance
- Line Voltage (60Hz)120V
- Number of Zones1
- RefrigerantR410A
- Suction Line Size3/8"
- Tonnage0.75
- CompressorRotary Inverter
- Condenser Motor HP0.053
- Condenser Motor RPM900 rpm
- Condenser Motor Watts40 watts
- Fan Diameter16.6
- Full Load0.14 amp
- Heating Capacity11500, 4500
- Height21.97 in
- HSPF10
- InverterFalse
- Length12.2 in
- Liquid Line Size1/4 in
- Maximum Fuse Size20 amp
- Maximum Piping Length82 Ft.
- Metering DeviceEEV
- Minimum Piping Length10 Ft.
- Motor Phase1
- Package Quantity1 ea
- Rated Current0.14 amp
- Rated Load5.3 amp
- Rows2
- SEER23.5
- Shipping Point46803, 92316
- Single-ZoneTrue
- Sound BlanketFalse
- Sound Level56 dBA
- UL ListedFalse
- UL RecognizedFalse
- Voltage115
- Weight82.45 lb
- Width31.89 in
Equipment Parts List
There is no data available for this product
