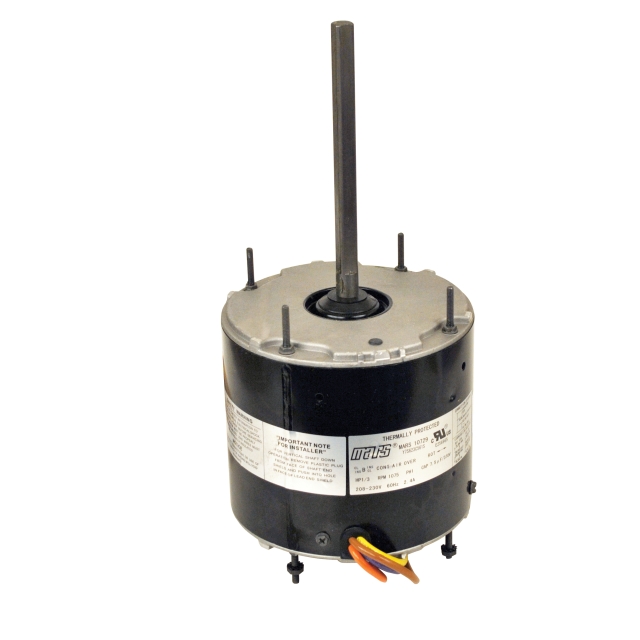

MARS all angle outdoor condenser fan motors are designed for either shaft-up or shaft-down applications. End shields are enclosed for weather protection. A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications.

Features & Benefits

• MARS all Angle Outdoor Condenser Fan Motors are Designed for Either Shaft-Up or Shaft-Down Applications
• End Shields are Enclosed for Weather Protection
• A Weep Hole is Provided in Each End Shield to Allow Condensate to Drain
• Rheem Mounting Holes with Screws Installed
• Water Slinger on Shaft
• Double Full Flatted Shaft
• Thermal Overload Protected
• Thru Bolt or Band Mounting
• Fan Duty, Continuous, Air Over
• Totally Enclosed

Specifications

• Enclosure Type: TEAO
• Power Rating: 3/4 HP
• Voltage Rating: 208 to 230 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 5.2 Amp
• Number of Speeds: 1
• Speed Rating: 1075 RPM
• Reversible: Yes
• NEMA Frame Size: 48
• Insulation Class: B
• Mounting: All Angle
• Application: Air Conditioner, Heat Pump
• Approval: UL, CUL
• Motor Type PSC
• Bearing Type Ball
• Overall Dimension 5-1/2 Inch Diameter x 12.73 Inch Length
• Shaft Size 1/2 Inch Diameter x 6.5 Inch Length
• Lead Length 36 Inch
• Thermal Protection Auto
• Ambient Temperature Rating 60 Deg C
