3 TON TXV
3 TON TXV
Description

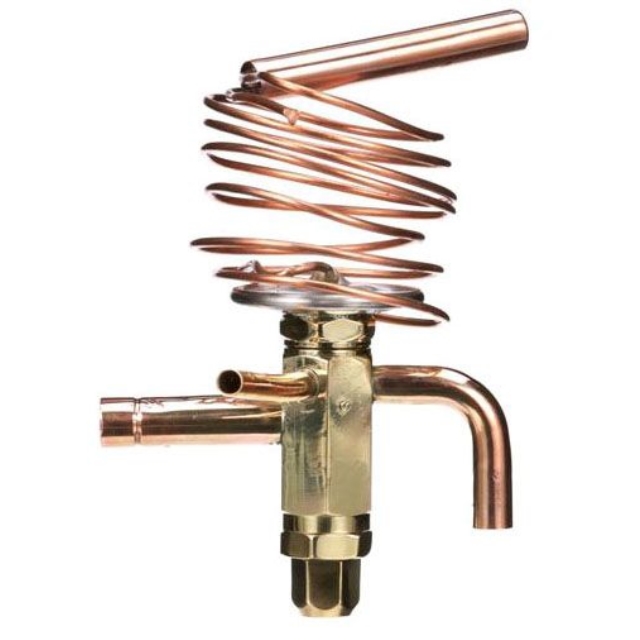

Emerson Electric Co. (White-Rodgers) 3/8" SAE Flare x 1/2" SAE Flare, 450 PSIG, 5' L Capillary, 3 Ton Capacity, R-22/R-407C, External Equalizer, Angle Body, Thermostatic Expansion Valve for Refrigeration/Air Conditioner and Heat Pump
The HF Series is a balanced ported valve designed for refrigeration, air conditioning and heat pump applications.
Features & Benefits
- Balanced port design
- Removable power element
- Field adjustable superheat
Specifications
- Type: Interchangeable, Externally Equalized
- Nominal Size: 3/8 Inch x 1/2 Inch
- End Connection: SAE Male Flare x SAE Male Flare
- Body Material: Brass
- Pressure Rating: 450 PSI
- Inclusions/Features: 60 Inch Capillary Tube, 100 Mesh Removable, Removable Power Element
- Application: Small Refrigeration System, Slush Machine, Air Conditioning Unit, Freezer, Walk-In Cooler, Refrigerated Case, Rail and Transport Refrigeration Refrigerant Type R-12, R-134a, R-401A, R-401B; Orifice Designation C; Charge W; Equalizer Size 1/4 Inch SAE Flare; Nominal Capacity 3 Ton
Specifications
- BrandFactory Authorized Part
- RefrigerantR22
- Capillary Length60 in
- Maximum Working Pressure450 PSIG
- Shipping Height4 in
- Shipping Length4 in
- Shipping Point37406
- Shipping Weight5 lb
- Shipping Width5 in
