5/8" Liquid Line Filter Drier ,30 CU IN
5/8" Liquid Line Filter Drier ,30 CU IN
Description

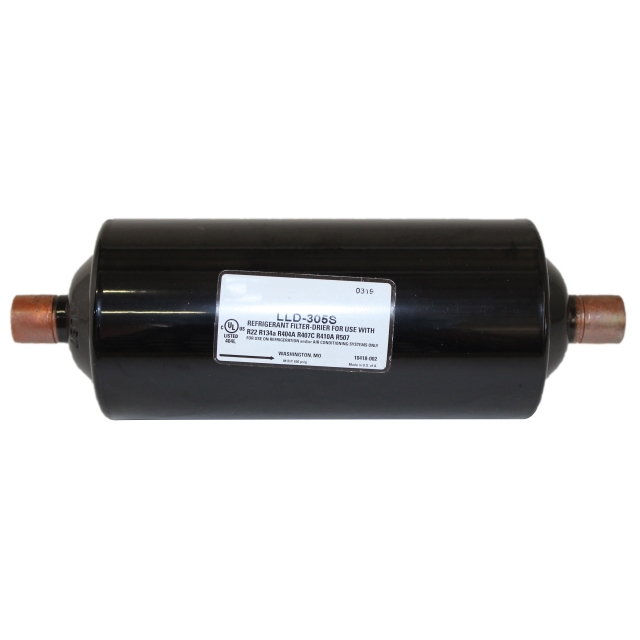

Parker Hannifin Corp. Gold Label™ 9.24" L, 5/8" x 5/8", ODF Soldered x ODF Soldered, 650 PSI, Powder Painted, Solid Copper Fitting, Refrigerant Liquid Line Filter Drier
Features & Benefits
- Unsurpassed Moisture Capacity and Maximum Filtration Capability for Today's Systems
- Powder Painted Exterior Coating Surpasses 500 Hour ASTM Salt Spray Test to Resist Corrosion
- Leaf-Spring Holds Core Firmly in Place and Provides Shockproof Assembly for Rugged Handling
- Solid Molecular Sieve Core Delivers Outstanding Filtration Capability While Providing Exceptional Water and Acid Capacity
- Robust Molded Core Eliminates the Possibility of Desiccant Breakdown
- Polyester Pad Seals Core to Shell Wall to Prevent Refrigerant Bypassing Core, Provides Added Filtration
- Corrosion Resistant Epoxy Coating
- Made in USA
Specifications
- Item: Liquid Line Filter Drier
- Size: 3.5 Inch Diameter x 9.43 Inch Length
- Material: Solid Copper (Fitting)
- Color/Finish: Epoxy Coated
- Used On Item: R-22/R-134A/R-404A/R-407C Refrigerant System
- Used On Model/Brand: HCFC/HFC/HFO
- Applicable Standard: UL (Canada and US) End Connection 5/8 Inch ODF Soldered x 5/8 Inch ODF Soldered; Pressure Rating 650 PSIG
Specifications
- BrandParker Hannifin
- BurnoutNo
- Connection Material FinishCopper
- Effective Volume Desiccant30
- Line TypeLiquid
- Nominal Connection Size5/8" in
- RefrigerantR22, R410A
- Diameter3 in
- Length9.24 in
- Maximum Working Pressure680 PSIG
- Shell Material & FinishPainted
- Shipping Height3 in
- Shipping Length11 in
- Shipping Point37406
- Shipping Weight3 lb
- Shipping Width3 in
- UL ListedFalse
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedFalse
- Weight2.92 lb
- Width3.14 in
