30HP 1800RPM 230/460V ODP
30HP 1800RPM 230/460V ODP
Description

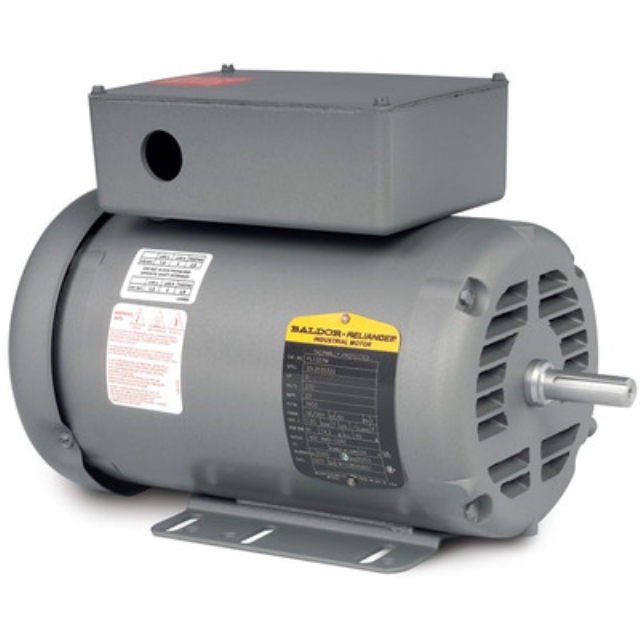

ABB Motors and Mechanical Inc. (Baldor-Reliance) 30 HP, 230/460 VAC 60 Hz 3-Phase, 37 A, 1775 RPM, F Insulation, Steel 286T Frame, F3 Mount Arrangement, Reversible, 4-Pole, 1-Speed, ODP, General Purpose AC Motor
Specifications
- Enclosure Type: ODP
- Power Rating: 30 HP
- Voltage Rating: 230/460 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 37 Amp
- Number of Speeds: 1
- Speed Rating: 1775 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 93 Percent
- NEMA Frame Size: 286T
- Insulation Class: F
- Frame Material: Steel
- Application: General Purpose Overall Length 25.06 Inch; Motor Type 4048M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 4; Power Factor 82; Temperature Rating 40 Deg C
Specifications
- BrandBaldor
- HP30
- Line Voltage (60Hz)480V
- TypeBlower Motor
- Shipping Height0.1 in
- Shipping Length0.1 in
- Shipping Weight339 lb
- Shipping Width0.1 in
- UL ListedFalse
- UL RecognizedFalse
- WarrantyPreserves Equipment Warranty
