5/8" Liquid Line Filter Drier ,41 CU IN
5/8" Liquid Line Filter Drier ,41 CU IN
Description

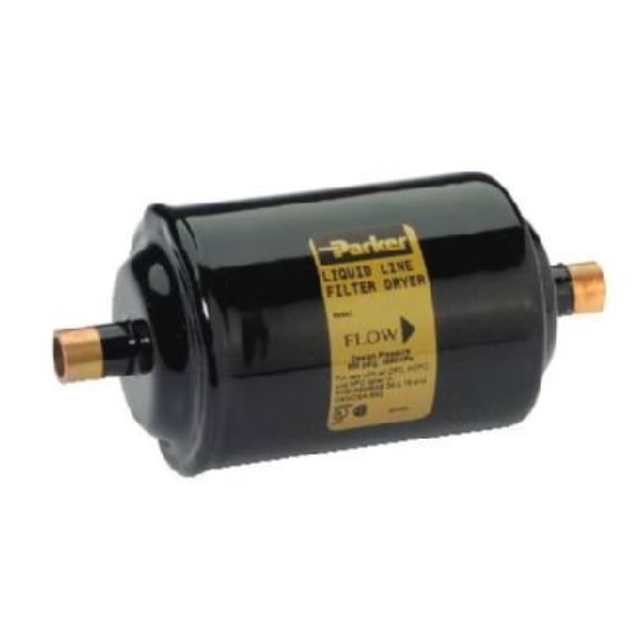

Parker Hannifin Corp. Gold Label™ 3.5" x 9.43", 5/8" ODF Soldered x 5/8" ODF Soldered, 650 PSIG, Epoxy Coated, Solid Copper Fitting, Liquid Line Filter Drier for HCFC/HFC/HFO R-22/R-134A Refrigerant System
Features & Benefits
- Balance Port Design Provide Perfect Pin and Port Alignment and Prevent Pressure Drop Across the Valve from influencing Valve Operation
Specifications
- Type: Automatic, Balanced Port, Adjustable Superheat
- Nominal Size: 1/2 Inch x 7/8 Inch
- End Connection: ODF x ODF
- Body Material: Brass Bar Stock
- Temperature Rating: -40 to 60 Deg F
- Pressure Rating: 450 PSI
- Inclusions/Features: 1/4 Inch ODF External Equalizer, 100 Mesh Insert Strainer
- Application: Small Chiller, Air Conditioner, Freezer, Walk-in Box, Refrigerant Case, Mobile Refrigerant Capillary Tube Length 60 Inch; Refrigerant Type R-22; Refrigerant Color Green; Capacity 5 Ton; Charge Code Maximum Operating Pressure, Pressure Limiting
Documents
Specifications
- BrandParker Hannifin
- BurnoutNo
- Connection Material FinishCopper
- Effective Volume Desiccant41
- Line TypeLiquid
- Nominal Connection Size5/8" in
- RefrigerantR22, R410A
- Diameter3.5 in
- Length9.43 in
- Maximum Working Pressure680 PSIG
- Shell Material & FinishPainted
- Shipping Height4 in
- Shipping Length11 in
- Shipping Point37406
- Shipping Weight12 lb
- Shipping Width4 in
- UL ListedFalse
- UL RecognizedFalse
- Weight3.35 lb
- Width3.64 in
