7/8" Liquid Line Filter Drier ,41 CU IN
7/8" Liquid Line Filter Drier ,41 CU IN
Description

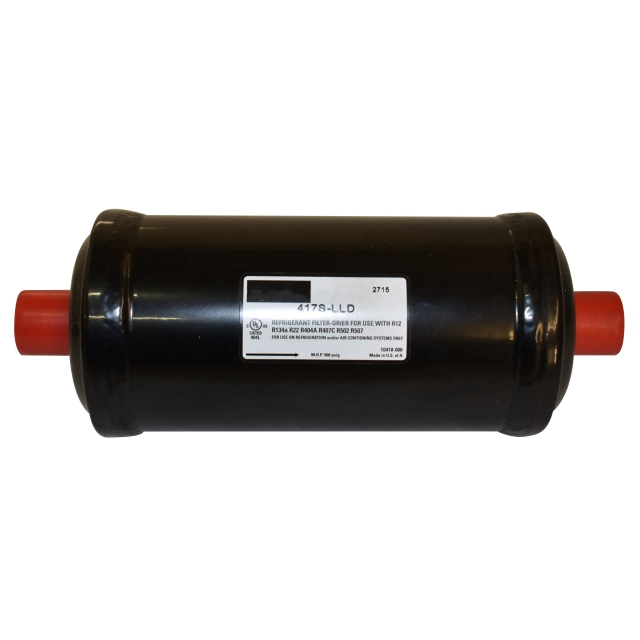

Parker Hannifin Corp. Gold Label™ 7/8" ODF Soldered x 7/8" ODF Soldered, 23.12 Ton, 650 PSIG, Powder Painted, Solid Copper, Liquid Line, Filter Drier for R22/R-134a/R-404A/R-507/R-407C/R410A Refrigerant
Features & Benefits
- Unsurpassed Moisture and Acid Capacities Maximum Filtration Capability for Today's Systems
- Compatible with Mineral Oil, Alkybenzene and POE Lubricants
- Solid Molecular Sieve Core
Specifications
- Size: 9.49 Inch Length
- Material: Solid Copper
- Color/Finish: Powder Painted
- Used On Item: Refrigerant
- Used On Item Part No: R22/R-134a/R-404A/R-507/R-407C/R410A
- Applicable Standard: UL (Canada and US)
- End Connection 7/8 Inch ODF Soldered x 7/8 Inch ODF Soldered
- Shell Diameter 3.5 Inch
- Flow Capacity 23.12 Ton
- Pressure Rating 650 PSIG
Documents
Specifications
- BrandParker Hannifin
- BurnoutNo
- Connection Material FinishCopper
- Effective Volume Desiccant41
- Line TypeLiquid
- Nominal Connection Size7/8" in
- RefrigerantR22, R410A
- Diameter3.5 in
- Length9.49 in
- Maximum Working Pressure680 PSIG
- Shell Material & FinishPainted
- Shipping Height12 in
- Shipping Length4 in
- Shipping Point37406
- Shipping Weight2 lb
- Shipping Width4 in
- UL ListedFalse
- UL RecognizedFalse
- Weight3.35 lb
- Width3.64 in
