5 HP MOTOR
5 HP MOTOR
Description

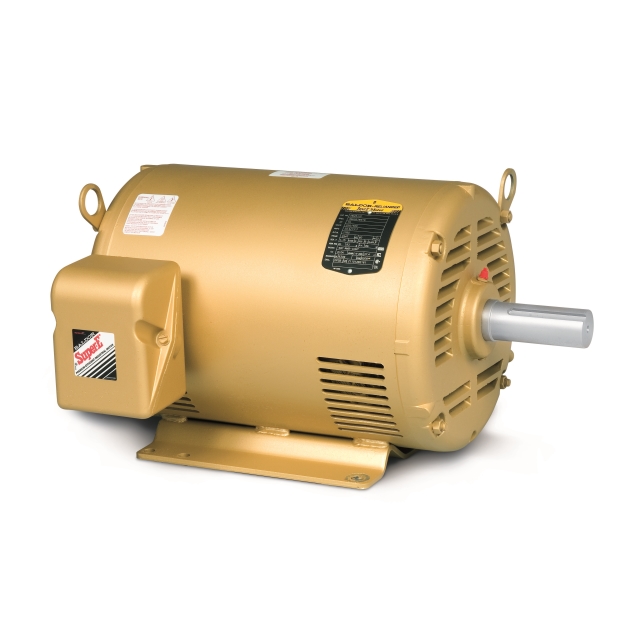

ABB Motors and Mechanical Inc. (Baldor-Reliance) 5 HP, 200 VAC 60 Hz 3-Phase, 13.8 A, 3450 RPM, F Insulation, Steel 182T Frame, Foot Mount, F1 Mount Arrangement, Reversible, 2-Pole, 1-Speed, OPSB, General Purpose AC Motor
Features & Benefits
- Uses Virtually Any Honeywell Four-Wire, Single-Stage, Multi-Stage or Trol-A-Temp Heat Pump Thermostat
- Optional Discharge Air Temperature Sensor For Capacity Control with Adjustable High and Low Limit
- System and Zone Leeds Indicate System Status
- Automatic Zone Changeover with 20-Minute Changeover Timer
- Individual Zone Fan Control
- Thermal Circuit Breaker Protects Panel and Transformer From Damage If Miswired
- Purge Timer Protects Equipment Between Calls for Heating and Cooling
Specifications
- Item: Conventional Zoning Kit
- Size: 12-3/4 Inch Length x 10-3/4 Inch Height
- Display Type: LED
- Mounting Type: Screw
- Color/Finish: Taupe (Cover), Gray (Base)
- Used On Item: Two and Three-Zone Heat Pump Voltage Rating 20 to 30 Volt AC; Frequency Rating 50/60 Hertz; Power Rating 10.75 Volt Amp; Humidity Rating 5 to 90 Percent RH Non-Condensing; Temperature Rating -20 to 120 Deg F (Shipping) -40 to 150 Deg F (Operating); Approval Federal Communications Commission Class B
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeOpen Slotted Band (OPSB)
- Frame Size182T
- HP5
- Insulation ClassClass F
- Number Of Poles2-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM3450
- RPM Range3000+
- Shaft Diameter1 1/8
- TypeBlower Motor
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps13.8
- Length13.62 in
- Motor Phase3
- Motor RPM3450
- Mounting MethodF1
- Service Factor1.15
- Shipping Height0.1 in
- Shipping Length0.1 in
- Shipping Weight69 lb
- Shipping Width0.1 in
- TypeGeneral Purpose
- UL ListedTrue
- UL ListedTrue
- UL RecognizedTrue
- UL RecognizedTrue
- Voltage200
