Totaline

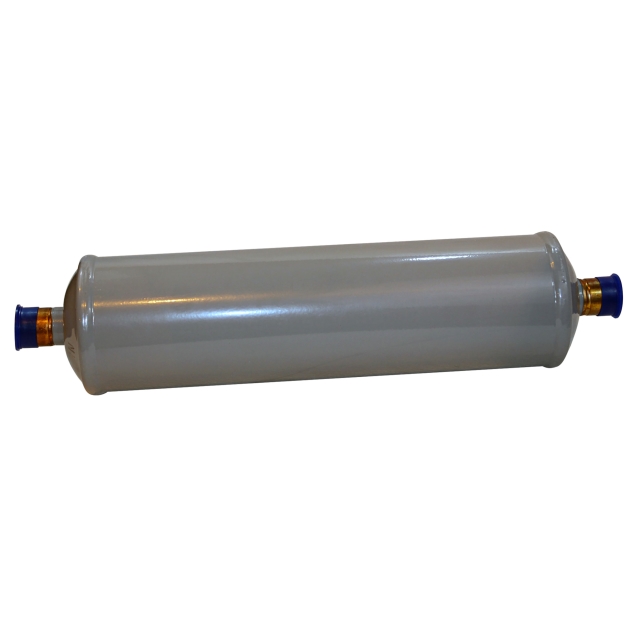

7/8" Sweat (ODF) Liquid Line Filter Drier ,75 CU IN

SKU:P502-8757S
Totaline

7/8" Sweat (ODF) Liquid Line Filter Drier ,75 CU IN

SKU:P502-8757S

    Description

    Compacted bead filter drier, with a fine 20 Micron outlet pad for maximum filtration. Universal Replacement for CFC, HCFC, and HFC Refrigerants. Filtration first for more effective use of surface area of desiccant. Solid copper connection for easy installation.

    Documents

    There are no documents available.

    Specifications

    • BrandTotaline
    • BrandTotaline
    • BurnoutNo
    • Connection Material FinishCopper
    • Connection TypeSweat (ODF)
    • Core Material & FinishCompacted Bead
    • Effective Volume Desiccant75
    • Line TypeLiquid
    • Nominal Connection Size7/8" in
    • RefrigerantCFC, HCFC, HFC
    • ApplicationFilter Drier
    • Cutout Length14.02 in
    • Diameter3.64 in
    • Filter Drier Overall Length15.25 in
    • Height3.64" in
    • Lay In Length13.16 in
    • Length15.25 in
    • Maximum Working Pressure680 PSIG
    • Shell Material & FinishPainted Steel
    • Shipping Height3.7 in
    • Shipping Length4.1 in
    • Shipping Point37406
    • Shipping Weight5 lb
    • Shipping Width17.7 in
    • Solder Sprocket Depth0.61 in
    • TypeLiquid Line
    • UL ListedTrue
    • UL RecognizedTrue
    • Weight6.14 lb
    • Width3.64 in
