A DOUBLE V-BELT
A DOUBLE V-BELT
Description

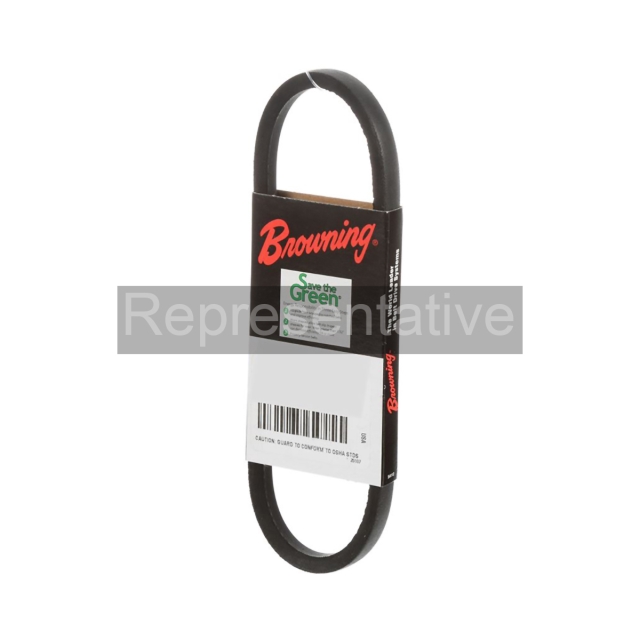

Regal Beloit Corporation (Browning) GRIPBELT® 0.5", 78.5" Outside Circumference, 77.1" Pitch Length, Neoprene, Type AA, Wrapped V-Belt
Features & Benefits
- Ideal for Multiple Shaft Drives-When a Drive Requires Operation of Several Shafts to Run in the Same or Different Directions Double V-Grip belts are the Most Economical Solution
- Ideal for Serpentine Drives
Specifications
- Type: AA
- Outside Circumference: 88.5 Inch
- Top Width: 0.5 Inch
- Material: Neoprene
- Application: Agitator, Brick Machinery, Blower and Exhauster, Bucket Elevator, Centrifugal Pump and Compressor, Exciter, Piston Compressor, Light Duty Conveyor, Belt Conveyor, Hammer Mill, Dough Mixer, Paper Mill Beater, Generator, Line Shaft, Laundry Machinery, Machine Tool, Punch Press Shear, Printing Machinery
- Applicable Standard: ARPM IP-20 Height 0.406 Inch; Pitch Length 87.1 Inch; Efficiency 95 Percent; Operating Temperature Rating 140 Deg F; Reinforcing Cord Material Polyester; Number of Ribs 1
Documents
Specifications
- BrandBrowning
- Belt TypeMultiple V-Belt
- Cross Section Height13/32"
- Cross Section Width1/2"
- Outside Length Range71-80"
- Common Belt SizeAA75
- MaterialDiene, Polyester
- Outside Length77 in
- SizeA
- Thickness0.41
- TypeV Belt
- Weight0.6 lb
