AFAE 5 HC SAE EE 5'3/8X3/8-1/2
AFAE 5 HC SAE EE 5'3/8X3/8-1/2
Description

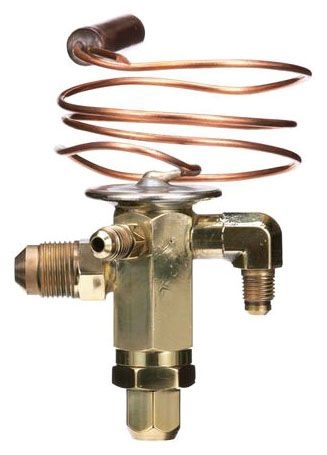

Emerson Electric Co. (White-Rodgers) 3/8" x 3/8 to 1/2", SAE Flare x SAE Flare, 5 Ton Capacity, 700 PSIG, R-22, Medium Temperature, Hermetic Design, Adjustable Superheat, 90D, Refrigerant Thermostatic Expansion Valve with External Equalizer and 5 ' Capillary Tube
The AFA Series is designed for air conditioning and commercial refrigeration applications requiring angle configuration SAE connections. The AFA is ideal for those applications requiring compact size combined with stable and accurate control over wide load and evaporator temperature ranges.
Features & Benefits
- Stainless Steel Replaceable Power Assembly Eliminate Corrosion and Prevent Valve Failure
- Two Body Size Provide Capacity from 1/4 to 20 Ton
- Bodies, Cages and Power Assemblies can be Ordered Separately or in Pre-Packaged Service Kits
- Bi-Directional Capability up to 3-1/2 Tons for R-22 on One Valve Superheat Control in Cooling and Heating
Specifications
- Type: Balanced Port Design, Bi-Directional, Adjustable Superheat, Standard Body, 90 Degree
- Nominal Size: 3/8 Inch x 1/2 Inch
- End Connection: SAE Flare x SAE Flare
- Pressure Rating: 450 PSIG
- Inclusions/Features: External Equalizer, Stainless Steel Power Assembly
- Exclusions: Bleed Hole
- Application: Refrigerant, Air Conditioner and Heat Pump
- Applicable Standard: UR/CUR, CRN Capillary Tube Length 5 Foot; Refrigerant Type R-12; Capacity 1/4 Ton; Charge Code Medium Temperature
Specifications
- BrandFactory Authorized Part
- Configuration90° Angle
- Equalizer LocationExternal
- RefrigerantR22, R407C
- TXV Charge CodeHC
- TXV Connection TypeFlare (SAE)
- TXV Inlet Size3/8"
- TXV Outlet Size3/8-1/2"
- TXV SeriesAFAE
- Capillary Length60 in
- Maximum Working Pressure700 PSIG
- Rated Capacity Primary Refrigerant5
