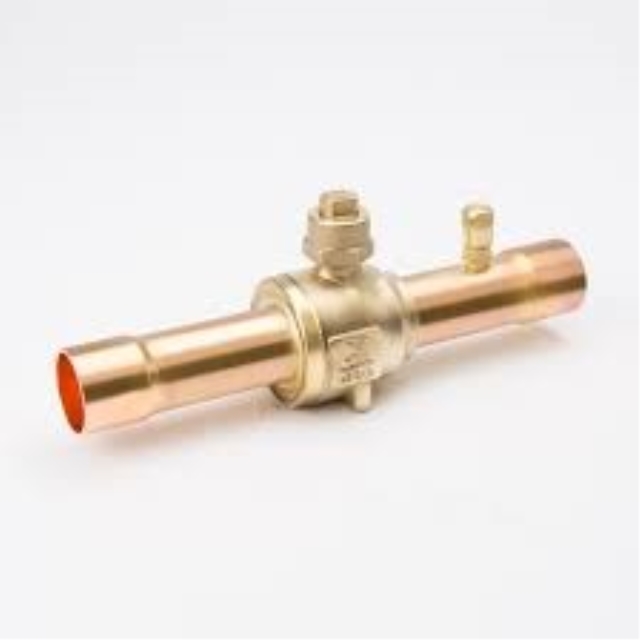

Streamline's CYCLEMASTER® ball valves feature full port construction, environmentally friendly, chromium-plated balls for reduced wear and extended seal life and our exclusive MCM™ seals for industry-leading longevity and low leak rates. Optional features include access ports, brass and valox seal caps, three-way body styles and motorized actuators to provide local or remote operation. CYCLEMASTER® ball valves are UL /cUL listed and CE certified – and are compatible with all CFC, HCFC and HFC refrigerants and oils. Operating temperature ranges from -40° F to 300° F with maximum working pressure of 700 psig.

Features & Benefits

• High Moisture and Acid Removal Capacity
• Copeland™ Products Approved for POE Oils
• Desiccant Blend - Optimized for High Water Capacity and Acid Capacity

Specifications

• Item: Liquid Line Filter Drier, Hermetic
• Size: 1.75 Inch Diameter x 3.83 Inch Length
• Material: Solid Copper (Connection)
• Color/Finish: Corrosion Resistant Epoxy Powder Painted
• Used On Item: R-12/R-134A/R-22/R-407C Refrigerant System, Residential Air Conditioner
• Used On Model/Brand: CFC/HCFC/HFC
• Applicable Standard: UL, CUL
Desiccant Volume 3 Cubic Inch; Filtration 40 Micron; Style Core; End Connection 1/4 Inch ODF Soldered x 1/4 Inch ODF Soldered; Pressure Rating 680 PSIG; Constructional Feature Corrosion Resistant
