BALL VALVE
BALL VALVE
Description

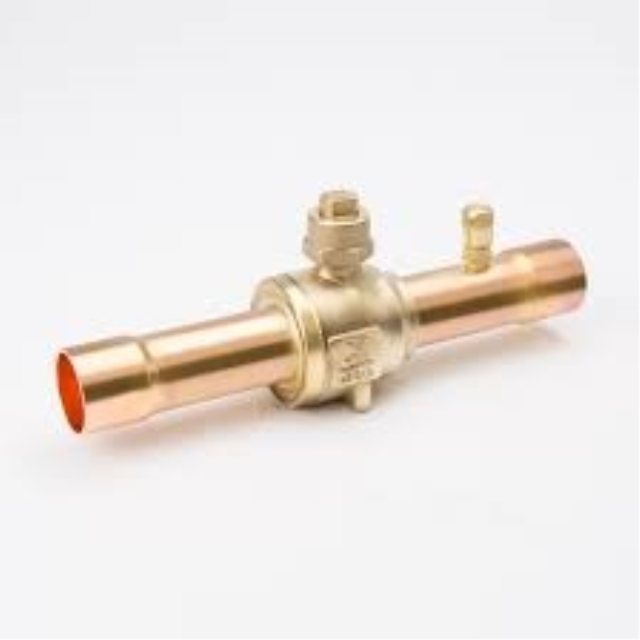

Mueller Industries, Inc. (Mueller Refrigeration) CYCLEMASTER® 3/8" x 3/8", 775 PSIG, Full Port, Bi‐Directional, Standard, Drilled/Tapped, Ball Valve
CYCLEMASTER® ball valves feature full port construction, environmentally friendly, chromium-plated balls for reduced wear and extended seal life and our exclusive MCM™ seals for industry-leading longevity and low leak rates. Optional features include access ports, brass and valox seal caps, three-way body styles and motorized actuators to provide local or remote operation.
Features & Benefits
- Full Port Construction to Match Line Size ID
- Internally Equalized Ball Design
- Rupture Proof Encapsulated Stem
- MCM Seal Technology
- RoHS Compliant
Specifications
- Type: Bi-Directional, Standard, Drilled/Tapped
- Nominal Size: 5/8 Inch x 5/8 Inch
- End to End Distance: 6.35 Inch
- Port Type: Full
- Temperature Rating: -40 to 300 Deg F
- Pressure Rating: 775 PSIG
- Inclusions/Features: Access Port, MCM Seal, Ruptureproof Encapsulated Stem, Internally Equalized Ball Design
- Application: HCFC/HFC/CFC/HFO Refrigerant and Oil, Air Conditioner
- Applicable Standard: ISO 9001, UL/CUL, CE RoHS Compliant; Port Size 0.5 Inch; Flow Rate 12.1 CFM; Kv Value 10
Specifications
- BrandMueller
- ApplicationRefrigeration
- Body MaterialBrass
- Inlet Connection Size3/8" in
- Outlet Connection Size3/8" in
- StyleBall Valve
- TypeShutoff Valve
- Description from Carrier3/8 Ball Valve Drilled & Tapped, Access Port
- Height0.87 in
- Length5.5 in
- Shipping Height2 in
- Shipping Length7 in
- Shipping Weight8 lb
- Shipping Width3 in
- TypeBall Valve
- UL ListedFalse
- UL RecognizedFalse
- Weight0.52 lb
- Width2.23 in
