Browning

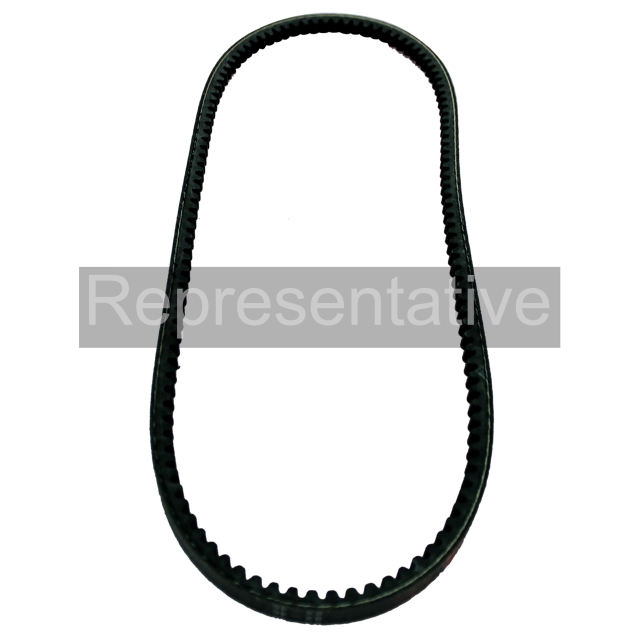

Browning 5VX710 Cogged V-Belt

SKU:5VX710
Browning

Browning 5VX710 Cogged V-Belt

SKU:5VX710

    Description

    Regal Beloit Corporation (Browning) GRIPNOTCH® 71" Outside Circumference, EPDM, Type 5VX, Cog V-Belt

    Browning® 3V, 5V, and 8V belts are specifically designed to provide maximum horsepower transmission and service life. One of our key features of the product series is EPDM (Ethylene Propylene Diene Monomer). This works to expand temperature range considerably. Operating temperatures for EPDM v-belts are -60°F to +230°F. This expanded range helps ensure long life and reliable performance. They can be counted on even in the most demanding climates and heat sensitive applications. Our exclusive fabric top and bottom design ensures stability and less cord stress helping to maximize service life.

    Features & Benefits

    • Ground Form Sidewalls Reduce Vibration and Increases Belt and Bearing Life
    • Raw Edge Sidewalls Provide a Uniform, Anti-Slip Surface with Greater Flexibility
    • Wider Notch Spacing Increases Rigidity and Stability While also Reducing the Stress on the Cord Line
    • Fabric Top and Bottom also Increases Rigidity and Stability of the Belt
    • "Code 1" 1-Match Belt System Assures that all the Belts in the Drive Carry an Equal Amount of the Load
    • Oil and Heat Resistant
    • Static Conducting

    Specifications

    • Type: 5VX
    • Outside Circumference: 71 Inch
    • Top Width: 5/8 Inch
    • Thickness: 17/32 Inch
    • Material: EPDM
    • Application: Aggregate and Cement, Agriculture, HVAC, Minerals and Mining, Oil and Gas, Pulp and Paper, Unit Handling
    • Temperature Rating -60 to 250 Deg F

    Documents

    There are no documents available.

    Specifications

    • BrandBrowning
    • Belt TypeNarrow V-Belt
    • Cross Section Height35/64"
    • Cross Section Width5/8"
    • Outside Length Range71-80"
    • Size5VX
    • StyleCogged
    • Common Belt Size5VX710
    • MaterialEthylene, Polyester
    • Outside Length71 in
    • Shipping Height0.1 in
    • Shipping Length0.1 in
    • Shipping Weight0.7 lb
    • Shipping Width0.1 in
    • Size5V
    • Thickness0.55
    • TypeNotched V Belt
    • Weight0.7 lb
