Features & Benefits

• Browning 358 Wrapped Belts are Constructed of Neoprene Material Wrapped Top and Bottom
• Operating Temperature Range of -30F to 140F Degrees
• More Horsepower in Less Space - Browning 358 Belts Provide More Horsepower in the Same Span than Conventional ABC Belts
• This Enables You to Reduce Drive Cost
• Greater Horsepower Allows for Smaller Drive Sheaves - Using 358 Belts Can Allow for Smaller Drive Components While Still Meeting the Drive Requirements , Thus Lowering the Overall Drive Cost
• Close Belt Tolerance - Browning Belts Offer the "Code 1" Match Belt System on All Classical and "358" Belts, Allowing Easy Selection of Just One Match Number for Each Belt Size
• This Ensures Tighter than RMA Standards

Specifications

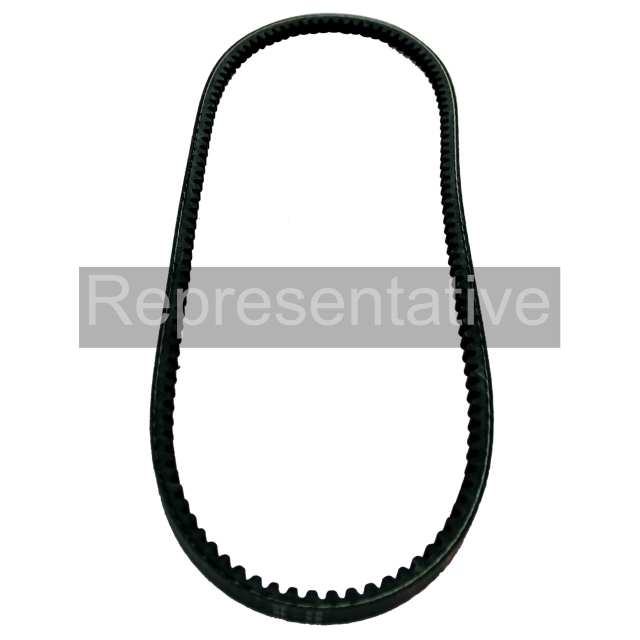

• Type: 5VX, Notched
• Outside Circumference: 83 Inch
• Top Width: 5/8 Inch
• Thickness: 17/32 Inch
• Material: EPDM
• Application: Agitator, Brick Machinery, Blower and Exhauster, Bucket Elevator, Centrifugal Pump and Compressor, Exciter, Piston Compressor, Light Duty Conveyor, Belt Conveyor, Hammer Mill, Dough Mixer, Paper Mill Beater, Generator, Line Shaft, Laundry Machinery, Machine Tool, Punch Press Shear, Printing Machinery
• Applicable Standard: RMA, MPTA IP-20
Height 0.5313 Inch; Band Type Belt with End Joined; Efficiency 98 Percent; Operating Temperature Rating 250 Deg F
