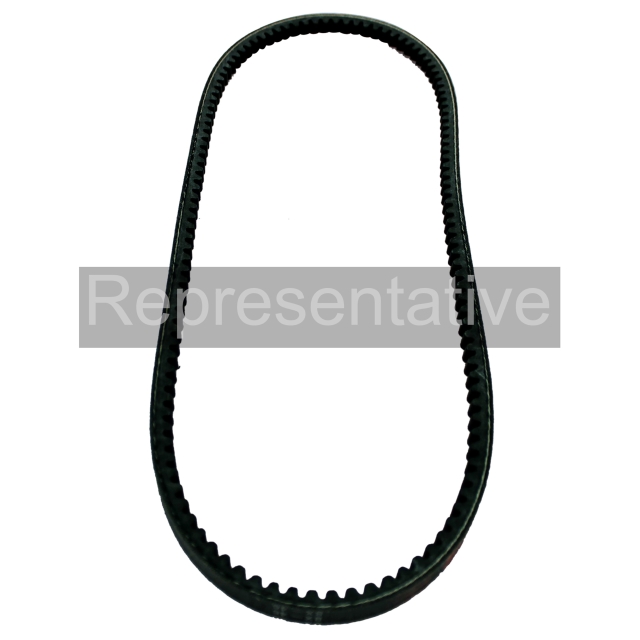

Browning® Classical v-belts are designed to deliver maximum performance and service life. Classical belts feature single wrap design, which provides greater flexibility when using small diameter sheaves. Classical single wrap v-belts also have less fabric overlap, which reduces center distance variation and vibration. For energy conscious users, our AX/BX molded notched/cogged v-belts are up to 3% more efficient than the wrapped designs.

Features & Benefits

• Wrapped Construction-Provides Smooth Quiet Operation
• Single Fabric Design Allows Greater Flexibility
• Wrapped Belts are More Tolerant to Slipping and Misalignment than Raw Edge Belts
• Close Belt Tolerance-Browning Belts Offer the "Code 1" Match Belt System on All Classical and "358" Belts, Allowing Easy Selection of Just One Match Number for Each Belt Size
• This Ensures Tighter than RMA Standards
• High Tensile Cord-Specially Treated Cords to Provide Strength and Additional Flex Life While Providing Resistance to Elongation for the Belt

Specifications

• Type: B
• Outside Circumference: 104 Inch
• Top Width: 21/32 Inch
• Thickness: 7/16 Inch
• Material: Neoprene
• Application: Agitator, Brick Machinery, Blower and Exhauster, Bucket Elevator, Centrifugal Pump and Compressor, Exciter, Piston Compressor, Light Duty Conveyor, Belt Conveyor, Hammer Mill, Dough Mixer, Paper Mill Beater, Generator, Line Shaft, Laundry Machinery, Machine Tool, Punch Press Shear, Printing Machinery
• Applicable Standard: RMA, MPTA IP-20
Height 0.4375 Inch; Band Type Belt with End Joined; Pitch Length 102.8 Inch; Efficiency 95 Percent; Operating Temperature Rating 140 Deg F
