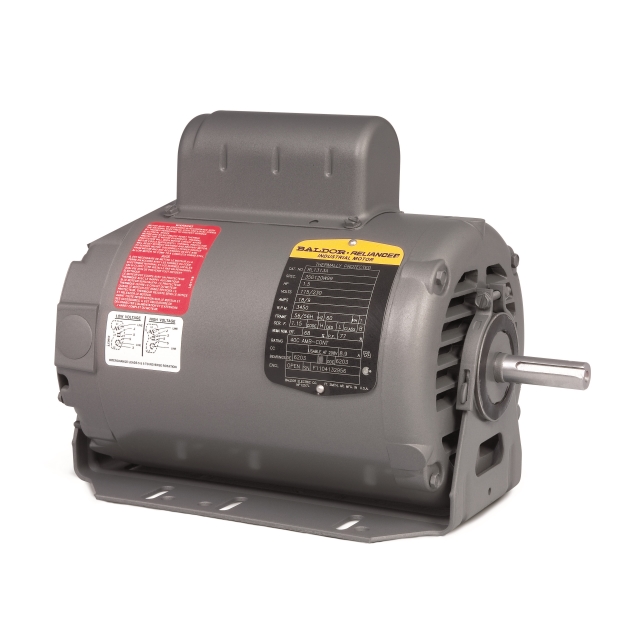

BELT DRIVE MOTOR 3/4 HP
BELT DRIVE MOTOR 3/4 HP
Description
ABB Motors and Mechanical Inc. (Baldor-Reliance) 0.75 HP, 115/230 VAC 60 Hz 1-Phase, 11/5.5 A, 3450 RPM, B Insulation, Steel 56 Frame, F1 Mount Arrangement, Reversible, 2-Pole, 1-Speed, Open, General Purpose AC Motor
Specifications
- Enclosure Type: Open
- Power Rating: 1 HP
- Voltage Rating: 115/230 Volt AC 1-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 14.6 Amp at 115 Volt AC, 7.3 Amp at 230 Volt AC
- Number of Speeds: 1
- Speed Rating: 3450 RPM
- Reversible: Yes
- Service Factor: 1.25
- Efficiency: 63 Percent
- NEMA Frame Size: 56/56H
- Insulation Class: B
- Frame Material: Steel
- Application: General Purpose
- Approval: UL, CSA Overall Length 11.42 Inch; Shaft Diameter 0.625 Inch; Motor Type 3520L; Base Indicator Resilient; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 2; Power Factor 69; Temperature Rating 40 Deg C
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeOpen Drip Proof (ODP)
- Frame Size56
- HP3/4
- Insulation ClassClass B
- Mounting MethodResilient
- Number Of Poles2-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM3450
- RPM Range3000+
- Shaft Diameter5/8
- TypeBlower Motor
- Voltage115/230V
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps5.5
- Length11.59 in
- Motor Phase1
- Motor RPM3600
- Mounting MethodF1
- Service Factor1.25
- Shipping Weight26 lb
- UL ListedTrue
- UL ListedTrue
- UL RecognizedTrue
- UL RecognizedTrue
- Voltage115/230
