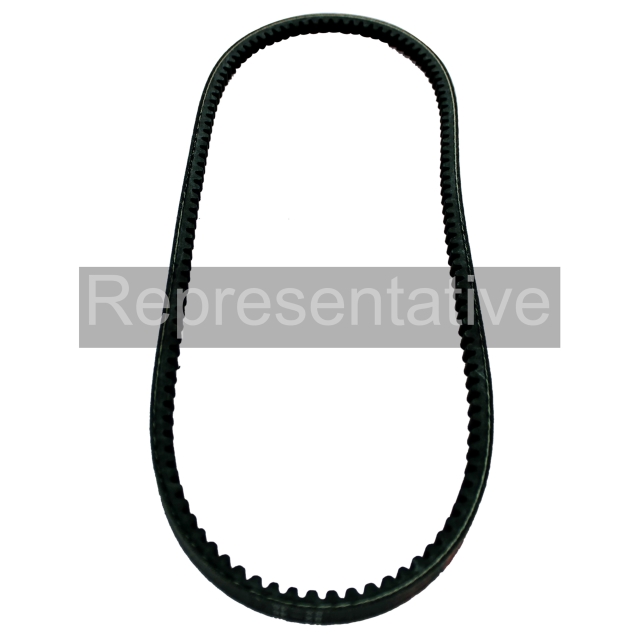

Totaline 5VX960 Cogged V-Belt


Totaline 5VX960 Cogged V-Belt
Description
NARROW V BELT COGGED
The unique design and superior quality of the TOTALINE Narrow V-Belt allow you to build or redesign drive systems using smaller pulleys, with shorter center distances (reducing system weight and space) and increased horsepower capacity (exceeding RMA standards by 23.6% average). NOTE: The TOTALINE Narrow V-Belt in three section sizes is ideal for all applications covered by five section sizes of multiple V-belts. For multiple or single drives, the 3V replaces A, B, and C belts; the 5V replaces C and D belts; and the 8V replaces D and E belts.
The unique design and superior quality of the TOTALINE Narrow V-Belt allow you to build or redesign drive systems using smaller pulleys, with shorter center distances (reducing system weight and space) and increased horsepower capacity (exceeding RMA standards by 23.6% average). NOTE: The TOTALINE Narrow V-Belt in three section sizes is ideal for all applications covered by five section sizes of multiple V-belts. For multiple or single drives, the 3V replaces A, B, and C belts; the 5V replaces C and D belts; and the 8V replaces D and E belts.
Documents
Specifications
- BrandTotaline
- Belt TypeNarrow V-Belt
- Cross Section Height35/64"
- Cross Section Width5/8"
- Outside Length Range91-100"
- Size5V
- StyleCogged
- Common Belt Size5VX960
- MaterialRubber, Polyester Cord, Canvas Cover
- Outside Length96 in
- Shipping Height2 in
- Shipping Length13 in
- Shipping Weight1.5 lb
- Shipping Width13 in
- Size5V
- Thickness0.54
- TypeNotched V Belt
- Weight0.972 lb
