1/2" Sweat (ODF) Liquid Line Filter Drier ,30 CU IN
1/2" Sweat (ODF) Liquid Line Filter Drier ,30 CU IN
Description

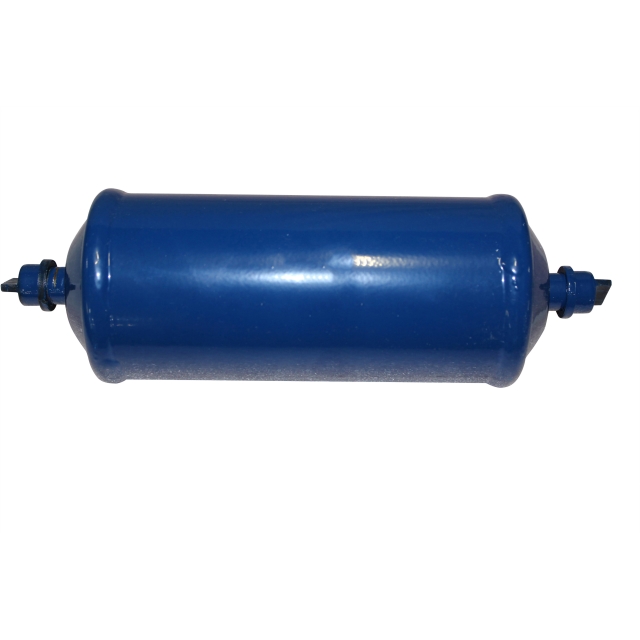

Emerson Electric Co. (White-Rodgers) 3.14" x 9.05", 1/2" ODF Soldered x 1/2" ODF Soldered, 30 Cu Inch, 680 PSIG, Epoxy Powder Painted, Solid Core, Hermetic, Bio-Directional, Liquid Line Filter Drier for CFC/HCFC/HFC Refrigerant System and Heat Pump
The BFK is a solid core, Bi-directional, liquid line filter drier for heat pump applications for use with CFC, HCFC, and HFC refrigerants.
Features & Benefits
- internal Check Valves Allow Flow and Filtration in Either Direction, Eliminates Need for External Check Valves
- High Moisture and Acid Removal Capacity
- Approved for POE Oils with Copeland™ Compressors
- Blend Optimized for High Water Capacity and Acid Capacity
Specifications
- Item: Liquid Line Filter Drier, Hermetic, Bio-Directional
- Size: 3.14 Inch Diameter x 9.74 Inch Length
- Color/Finish: Epoxy Powder Painted
- Used On Item: Refrigerant System, Heat Pump
- Used On Model/Brand: CFC/HCFC/HFC
- Applicable Standard: UL, CUL Desiccant Volume 30 Cubic Inch; Filtration 40 Micron; Style Solid Core; End Connection 3/4 Inch ODF Soldered x 3/4 Inch ODF Soldered; Pressure Rating 680 PSIG; Constructional Feature Corrosion Resistant
Specifications
- BrandEmerson
- BurnoutNo
- Connection TypeSweat (ODF)
- Core Material & FinishSolid Core
- Effective Volume Desiccant30
- Line TypeLiquid
- Nominal Connection Size1/2" in
- RefrigerantR22, R410A
- Length9.05 in
- Maximum Working Pressure680 PSIG
- Shipping Height3.2 in
- Shipping Length11.2 in
- Shipping Point37406
- Shipping Weight2.45 lb
- Shipping Width3.4 in
- UL ListedFalse
- UL RecognizedFalse
- Weight0.35 lb
- Width3.14 in
