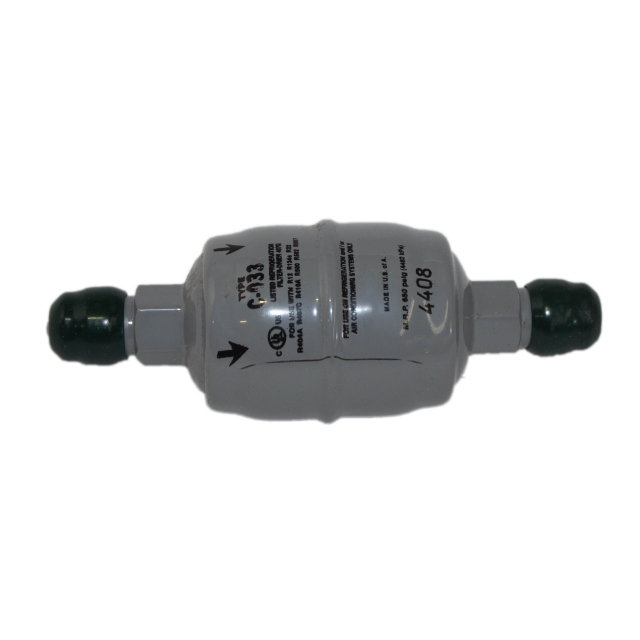

5/8" Flare (SAE) Liquid Line Filter Drier ,3 CU IN
5/8" Flare (SAE) Liquid Line Filter Drier ,3 CU IN
Description
- Complete contaminant control to protect and extend system life and ensure system reliability.
- High performance desiccant package provides high water & acid capacity.
- Porous molded core provides excellent filtration of solid debris for TEV and compressor protection.
- Models available with activated charcoal for use during system clean-up.
- Liquid line drying and filtering for solid contaminant removal.
- Hot gas defrost line filtering
Specifications
- BrandSporlan
- BurnoutNo
- Connection Material FinishCopper
- Connection TypeFlare (SAE)
- Core Material & FinishMolded Porous Core
- Effective Volume Desiccant3
- Line TypeLiquid
- Nominal Connection Size5/8" in
- RefrigerantHC, HCFC, HFC, HFO
- ApplicationLiquid Line, Hot Gas Defrost Line
- Diameter1.75 in
- Height1.75 in
- Length4.69 in
- Maximum Working Pressure650 PSIG
- Refrigerant Charge Amount (Lbs)0.5
- Shell Material & FinishPainted
- Shipping Height10 in
- Shipping Length6 in
- Shipping Weight11 lb
- Shipping Width10 in
- TypeLiquid Line
- UL ListedFalse
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedFalse
- Weight0.42 lb
- Width1.75 in
