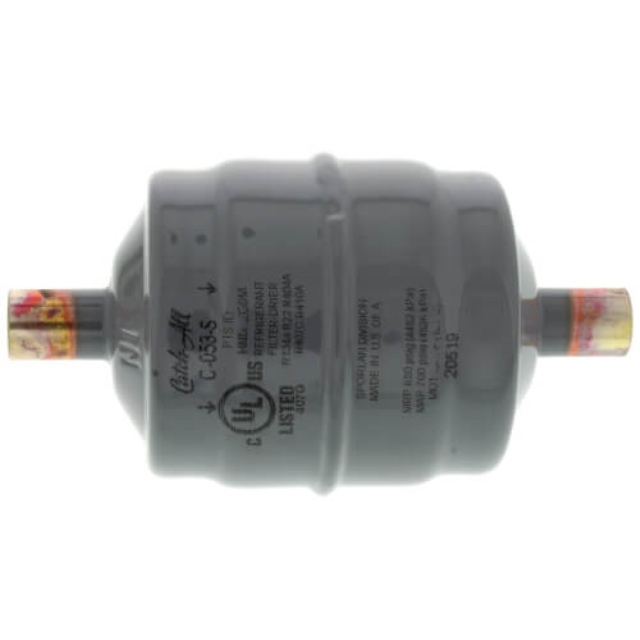

The universal acceptance of the Catch-All® Filter-Drier is due to its unique molded porous core, consisting of a blend of highly effective desiccants. The quality features built into it assure years of service on any refrigeration system.

Features & Benefits

• Complete Contaminant Control to Protect and Extend System Life and Ensure System Reliability
• High Performance Desiccant Package Provides High Water Capacity and Acid Capacity
• Models Available with Activated Charcoal for Use During System Clean-Up
• CSG Models Have an integrated Liquid and Moisture indicating Sightglass to Allow Visual Refrigerant Examination
• Suitable for Use with HCFC, HFC, HFO and HC Refrigerant
• UL Listed for 650 PSIG Rated Pressure for R-410A and Sub-Critical CO₂ Refrigerant Use
• RoHS/Reach Compliant

Specifications

• Item: Liquid Line Filter Drier, Sealed
• Size: 2.44 Inch Diameter x 5.62 Inch Length
• Used On Item: R-410A Refrigeration System, Air Conditioner
• Used On Model/Brand: HCFC/HFC/HFO/HC
• Applicable Standard: ATEX, PED, UL
RoHS/Reach Compliant; Desiccant Volume 9 Cubic Inch; Style Charcoal Core; End Connection 1/4 Inch SAE Flare x 1/4 Inch SAE Flare; Pressure Rating 650 PSIG; Nominal Capacity 3/4 to 2-1/2 Ton
