1/4" Sweat (ODF) Refrigerant Filter Drier ,8 CU IN ,Burnout
1/4" Sweat (ODF) Refrigerant Filter Drier ,8 CU IN ,Burnout
Description

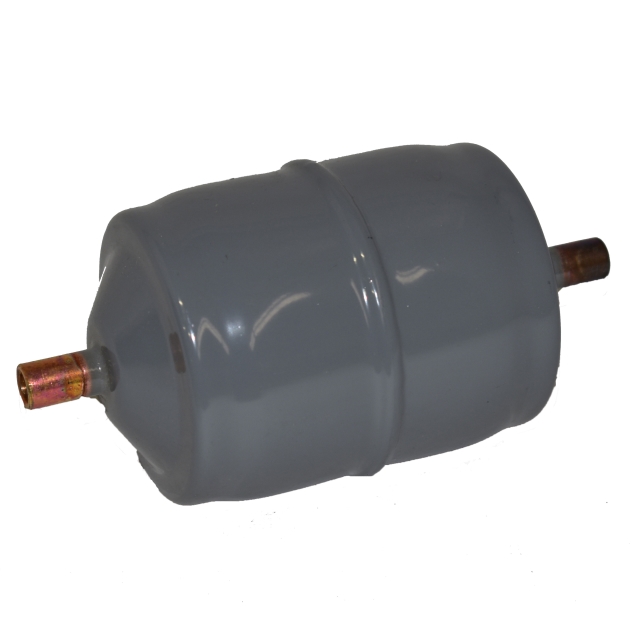

Parker Hannifin Corp. (Sporlan) CATCH-ALL® 2.62" x 5.16", 1/4" ODF Soldered x 1/4" ODF Soldered, 9 Cu Inch, 650 PSIG, Charcoal Core Style, Liquid Line Filter Drier for Refrigeration System and Air Conditioner
Features & Benefits
- Complete Contaminant Control to Protect and Extend System Life and Ensure System Reliability
- High Performance Desiccant Package Provides High Water Capacity and Acid Capacity
- Models Available with Activated Charcoal for Use During System Clean-Up
- CSG Models Have an integrated Liquid and Moisture indicating Sightglass to Allow Visual Refrigerant Examination
- Suitable for Use with HCFC, HFC, HFO and HC Refrigerant
- UL Listed for 650 PSIG Rated Pressure for R-410A and Sub-Critical CO2 Refrigerant Use
- RoHS/Reach Compliant
Specifications
- Item: Liquid Line Filter Drier, Sealed
- Size: 2.62 Inch Diameter x 6.06 Inch Length
- Used On Item: R-410A Refrigeration System, Air Conditioner
- Used On Model/Brand: HCFC/HFC/HFO/HC
- Applicable Standard: ATEX, PED, UL RoHS/Reach Compliant; Desiccant Volume 9 Cubic Inch; Style Charcoal Core; End Connection 3/8 Inch SAE Flare x 3/8 Inch SAE Flare; Pressure Rating 650 PSIG; Nominal Capacity 3/4 to 2-1/2 Ton
Specifications
- BrandSporlan
- BurnoutYes
- Connection Material FinishCopper
- Connection TypeSweat (ODF)
- Effective Volume Desiccant8
- Nominal Connection Size1/4" in
- RefrigerantR12, R22, R134A, R404A, R407C, R410A
- Maximum Working Pressure650 PSIG
- Shipping Height3 in
- Shipping Length9 in
- Shipping Weight1 lb
- Shipping Width3 in
- UL ListedFalse
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedFalse
- Weight0.98 lb
