1/2" Sweat (ODF) Suction Line Filter Drier ,8 CU IN ,Burnout
1/2" Sweat (ODF) Suction Line Filter Drier ,8 CU IN ,Burnout
Description

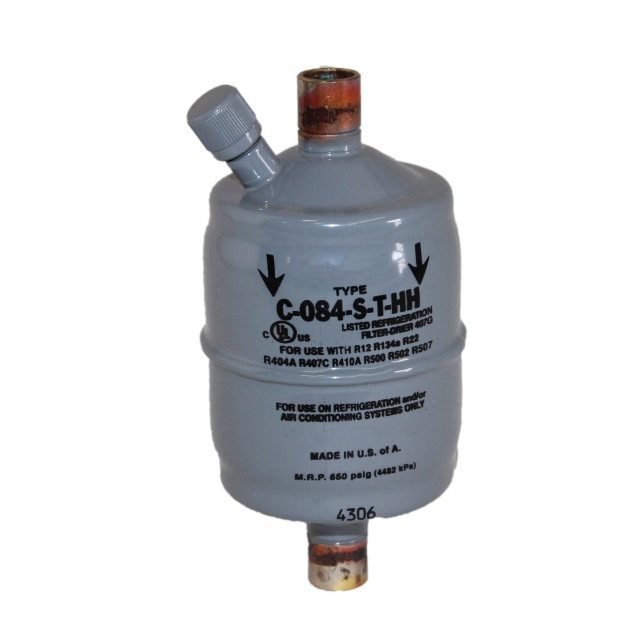

Parker Hannifin Corp. (Sporlan) CATCH-ALL® 2.62" x 5.44", 1/2" ODF Soldered x 1/2" ODF Soldered, 9 Cu Inch, 650 PSIG, Charcoal Core Style, Pressure Tap Access, Sealed, Suction Line Filter Drier for R-12/R-22 Refrigeration System and Air Conditioner
Features & Benefits
- The Famous Molded Porous Core for Maximum Contaminant Removal
- The Core cannot Swell, Powder or Pack Assuring Ease of Installation and Removal
- The Bolt and Nut Attachment of the End Plate Provides Simple Trouble-Free Installation
- The internal construction gives a one piece assembly and assures proper core alignment
- A Complete Line of Fitting Sizes All with Copper Fittings
- A Corrosion Resistant Powder Painted Protects the Exterior of the Shell
Specifications
- Item: Liquid Line Filter Drier
- Size: 6 Inch Diameter x 20.67 Inch Length
- Color/Finish: Powder Painted
- Used On Item: R-22/R-134A/R-404A/R-507 Refrigeration System, Air Conditioner
- Applicable Standard: UL (Canada and US) Desiccant Volume 144 Cubic Inch; Style Replaceable Core; End Connection 1-3/8 ODF Soldered x 1-3/8 ODF Soldered; Pressure Rating 650 PSIG; Number of Cores 3; Constructional Feature Corrosion Resistant
Specifications
- BrandSporlan
- BurnoutYes
- Connection TypeSweat (ODF)
- Core Material & FinishSolid Core
- Effective Volume Desiccant8
- Line TypeSuction
- Nominal Connection Size1/2" in
- RefrigerantR12, R22, R134A, R404A, R407C, R410A
- Diameter2.62 in
- Length5.44 in
- Maximum Working Pressure350 PSIG
- Shipping Height3 in
- Shipping Length8 in
- Shipping Point37406
- Shipping Weight6 lb
- Shipping Width8 in
- UL ListedFalse
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedFalse
- Weight1.04 lb
