7/8" Sweat (ODF) Suction Line Filter Drier ,16 CU IN ,Burnout
7/8" Sweat (ODF) Suction Line Filter Drier ,16 CU IN ,Burnout
Description

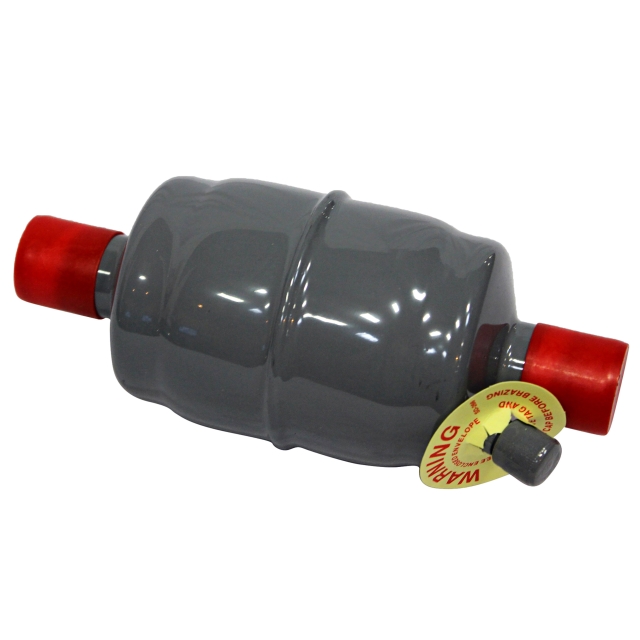

Parker Hannifin Corp. (Sporlan) CATCH-ALL® 7/8" x 7/8", ODF Soldered x ODF Soldered, 6.92" L, 16 Cu Inch Desiccant, 650 PSI, Sealed, Suction Line, Filter Drier for Refrigerant and Air Conditioning System
Features & Benefits
- Blend of Desiccant
- Uniform Molding
- Shockproof Assembly
- No Bypassing
- Outlet Safety Filter
- Leakproof Shell
- Pressure Tap Consisting of a Schrader Type Access Valve on the Inlet End of the Catch-All
- Charcoal Style Core for Wax Removal and Clean-Up after a Hermetic Motor Burnout
Specifications
- Size: 3 Inch Diameter x 6.92 Inch Length
- Used On Item: Refrigerant/Air Conditioning System
- Applicable Standard: UL (Canada and US), ATEX
- Type Sealed
- Refrigerant Type R134A/R22/R404A/R507/R407A/R407C/R407F/R410A
- End Connection 7/8 Inch ODF Soldered x 7/8 Inch ODF Soldered
- Volume of Desiccant 16 Cubic Inch
- Pressure Rating 650 PSI
- Application Wax Removal, New System and Clean-Up after Burnout
Documents
There are no documents available.
Specifications
- BrandSporlan
- BurnoutYes
- Connection TypeSweat (ODF)
- Core Material & FinishSolid Core
- Effective Volume Desiccant16
- Line TypeSuction
- Nominal Connection Size7/8" in
- RefrigerantR12, R22, R134A, R404A, R407C, R410A
- Diameter3 in
- Height29.9375 in
- Length6.93 in
- Maximum Working Pressure650 PSIG
- Shell Material & FinishPainted
- Shipping Height3.2 in
- Shipping Length3.1 in
- Shipping Point37406
- Shipping Weight1.6 lb
- Shipping Width7.9 in
- TypeSuction Line
- UL ListedFalse
- UL ListedFalse
- UL RecognizedFalse
- UL RecognizedTrue
- Weight1 lb
- Width29.9375 in
