Totaline

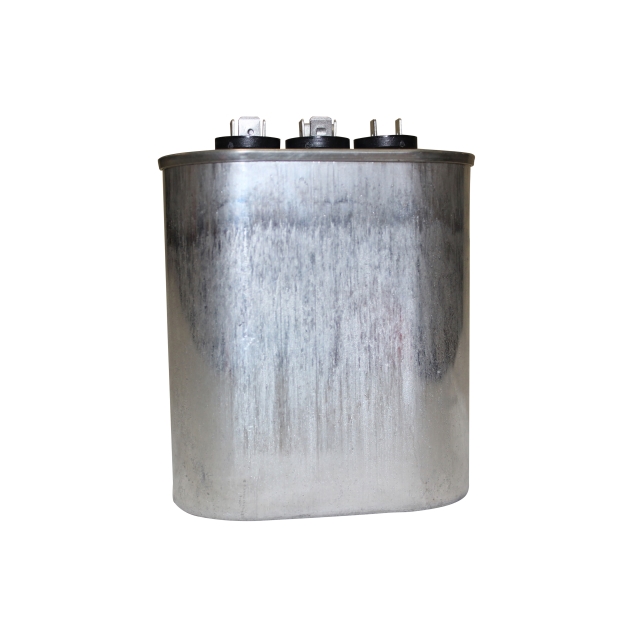

30/10MFD Run Capacitor 370V Oval

SKU:P291-3013
Totaline

30/10MFD Run Capacitor 370V Oval

SKU:P291-3013

    Description

    • Reliability tested to meet 60,000 service hours, per United Technologies application parameters
    • High grade metallized Polypropylene Film (5 to 12 microns thick)
    • RoHS Compliant UL Approved with Pressure Sensitive interrupter of 1000 AFC
    • Performance tested per United Technologies reliability requirements for capacitance ratings, power factor, dissipation factor and high voltage testing

    Note: Distributors that have historically stocked 440 volt and 370 volt capacitors round and / or oval designs can standardize inventory to use a 440 volt capacitors as replacement for a 370 volt capacitor provided the capacitance in (Mfd.) stays exactly the same. Warning Note: Under no circumstances are we recommending usage of a 370 volt capacitor to replace a 440 volt capacitor. Also our capacitor straps are designed to secure and ground the capacitor,

    Documents

    There are no documents available.

    Specifications

    • BrandTotaline
    • Capacitance30/10 µF
    • Run Capacitor TypeDual
    • ShapeOval
    • TypeRun Capacitor
    • Voltage370
    • Can Diameter1.9 in
    • Can Max Height. Incl Terminal Len3.5 in
    • Frequency50/60
    • MaterialFilm
    • Shipping Height1.5 in
    • Shipping Length6.3 in
    • Shipping Point37406
    • Shipping Weight0.85 lb
    • Shipping Width3.4 in
    • Temperature Range-40°F To 158°F (-40°C To 70°C)
    • TypeRun
    • VoltageD709F38EF758B5066EF31B18039B8CE5
    • Weight0.8 lb
