Description

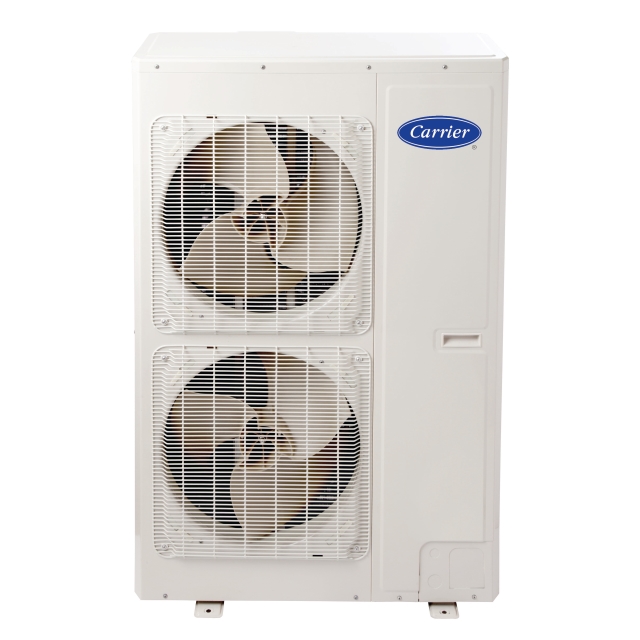

This flexible multi-zone heat pump can be used to serve a single room or your entire home. As part of the GJ System, it can provide cooling for those hot summer days and warmth the rest of the year while temperatures remain above -4° F.
As a multi-zone, you can use up to nine multiple style indoor units supported by just this one efficient, outdoor variable-speed compressor unit. For quiet comfort in a small or large space application, it can't be beat.
Standard Features
- Inverter Compressor
- Up to 22.0 SEER cooling efficiency
- Up to 10.2 HSPF heating efficiency
- Available in 208/230V
- Built-in basepan heater
- Total piping length 66-476' depending on unit capacity
- Connects two to nine indoor units (zones) off a single outdoor unit
- Multiple style indoor units (Infinity® Series)
- Quiet outdoor sound operation, as low as 56 decibels*
- System diagnostics
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registrationâ€
Optional Features
- Branch Boxes (required for sizes 48 & 56)
*Quietest size within each model group during most common cooling operating condition.
†If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
Documents
Specifications
- BrandCarrier
- Cooling Capacity48000
- FamilyInfinity
- Line Voltage (60Hz)240V
- RefrigerantR410A
- Tonnage4
- ColorWhite
- Heating Capacity54500
- Height53 in
- HSPF8.2
- InverterFalse
- Length13.4 in
- Liquid Line Size3/8 in
- Maximum Fuse Size50 amp
- Motor Phase1
- Multi-ZoneTrue
- Package Quantity1 ea
- SEER16
- Shipping Point46803
- Sound Level57 dBA
- UL ListedFalse
- UL RecognizedFalse
- Voltage208/230
- Weight255.7 lb
- Width35.4 in
