This product has been superseded by

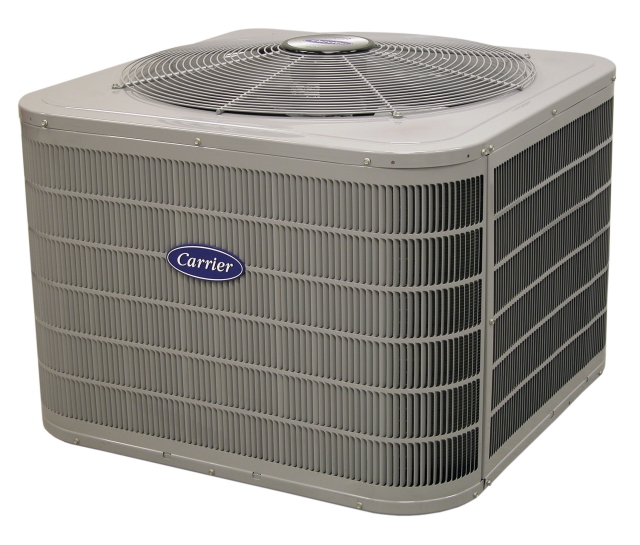

SKU25HCE460A005![25HCE460A005_001.jpg](https://d1049ui2fjityy.cloudfront.net/userfiles/inriver/images/25/hc/e4/25hce460a005_001_medium.jpg)
This product has been superseded by
SKU25HCE460A005Description
25HCE460A005
25H = Comfort Series Heat Pump with Puron Refrigerant
C = Comfort
E = Puron
4 = 14 SEER
60 = 60,000 Btuh
A = Dense Grille
0 = Not Defined
0 = Not Defined
5 = 208/230 ---3
25H = Comfort Series Heat Pump with Puron Refrigerant
C = Comfort
E = Puron
4 = 14 SEER
60 = 60,000 Btuh
A = Dense Grille
0 = Not Defined
0 = Not Defined
5 = 208/230 ---3
STANDARD FEATURES
- 14 SEER cooling efficiency
- 8.2 HSPF heating efficiency
- Sound: as low as 69 decibels1
- Filter drier system protection from moisture and contaminants
- WeatherArmor™ protection
- Non-ozone depleting Puron® refrigerant
- 10-year parts limited warranty2
OPTIONAL FEATURES
- Optional labor warranty available3
1 Quietest size within each model group during most common cooling operating condition.
2 To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
3 Ask your Carrier® dealer for details.
EFFICIENCY
- 14 SEER
- 11.5 EER
- 8.2 HSPF
PERFORMANCE
- Good cold weather performance
- Hybrid Heat® system compatible when paired with select thermostats
- Sound: as low as 69 decibels1
TECHNOLOGY
- Single-stage scroll compressor
- System protecting high pressure and loss of charge switches
- Filter drier
- Recommended controls: Carrier® Côr™ thermostat
CAPACITIES
- 1.5-5 ton
REQUIREMENTS
- 208-230 V
AESTHETICS
- Heavy-gauge, galvanized steel construction
- Baked-on, durable powder coat paint
- Dense-wire coil guard
1 Quietest size within each model group during most common operating condition.
Specifications
- BrandCarrier
- CFM4470
- CoastalFalse
- Compressor Stage1
- ConfigurationVertical
- Cooling Capacity60000
- FamilyComfort
- Gas Stages1-Stage
- Line Voltage (60Hz)240V
- Nominal Seer14
- RefrigerantR410A
- Tonnage5
- Voltage (Phase)208/230 V 3-Phase
- Air FlowVertical
- CompressorScroll
- Condenser Motor TypePermanent Split Capacitor
- EER11.7
- Frequency60
- Metering DeviceTXV
- Motor Phase3
- Number Of Fan Blades2
- SEER14
Equipment Parts List
There is no data available for this product
