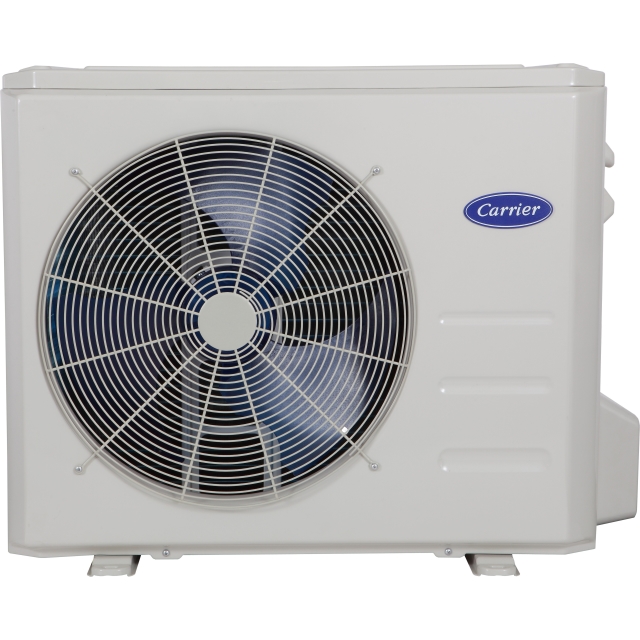

18K Outdoor Ductless CO Single Zone Performance 208/230V R410A
This product is obsolete
18K Outdoor Ductless CO Single Zone Performance 208/230V R410A
Description
38MHRC18A--3
38 = Outdoor Unit
MH = Model
R = Outdoor Unit
C = Cooling Only
18 = 18,000 BTU
A = Single Zone
-- = Not Used
3 = 208/230V - 1 - 60
38 = Outdoor Unit
MH = Model
R = Outdoor Unit
C = Cooling Only
18 = 18,000 BTU
A = Single Zone
-- = Not Used
3 = 208/230V - 1 - 60
Standard Features
- Inverter Driven Compressor
- Low Sound Levels
- Fast Installation
- Built in self diagnostic system
- Factory Installed Basepan Heater
- Factory Installed Crankcase Heater
- Auto-Restart Function
- Condenser High Temp Protection
- Refrigerant Leak Detection
- Aluminum Golded Hydrophilic Pre-Coated Fins
Documents
There are no documents available.
Specifications
- BrandCarrier
- Cooling Capacity17000
- FamilyComfort
- Line Voltage (60Hz)240V
- Number of Zones1
- RefrigerantR410A
- Suction Line Size1/2"
- Tonnage1.5
- CompressorRotary Inverter
- Height21.81 in
- InverterTrue
- Length13.11 in
- Liquid Line Size1/4 in
- Maximum Fuse Size15 amp
- Maximum Piping Drop65 ft
- Maximum Piping Length98
- Maximum Piping Lift65 ft
- Metering DeviceEEV
- Minimum Ambient Temperature0 °F
- Motor Phase1
- Package Quantity1 ea
- Rated Load7 amp
- Shipping Height25.5 in
- Shipping Length15 in
- Shipping Weight74 lb
- Shipping Width33.5 in
- Single-ZoneTrue
- Sound BlanketFalse
- Sound Level57 dBA
- UL ListedFalse
- UL RecognizedFalse
- Unit Eer10.5
- Unit Seer17
- Voltage208/230
- Weight70.1 lb
- Width31.5 in
