50PCV024LCC3--30

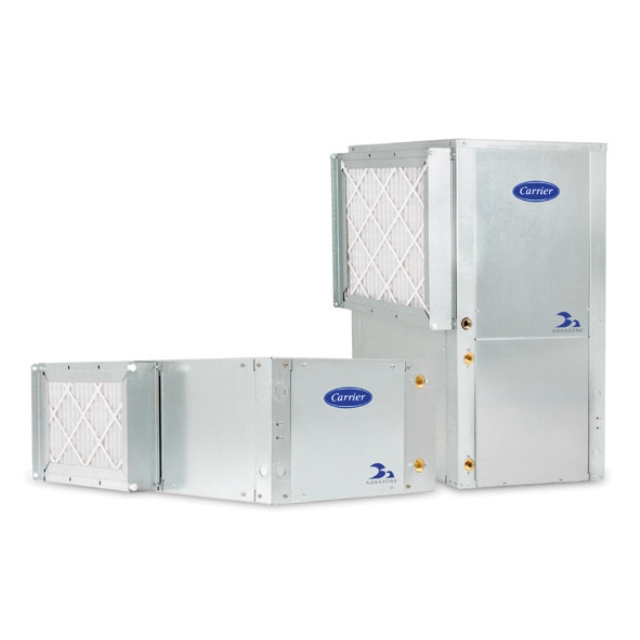

50PCV = Aquazone^TM Compact Water Source Heat Pump - Vertical Upflow Configuration (R410A)
024 = 2 Ton Capacity
L = Left Return, Top/Bottom Discharge, PSC Blower Motor
C = Standard C Microprocessor Control
C = Standard Options. Non-Coated Copper Air Coil
3 = 208/230-1-60
- = Current Revision
- = Packaging Option
3 = Standard Range (60 to 95F)
0 = No Water Circuit Option

Performance Features

• EERs up to 17.7
• Non-ozone depleting Puron® refrigerant (R-410A)
• Capacities of 1/2 to 6 tons
• Standard PSC (permanent split capacitor) blower motor or optional constant torque ECM (Electronically Commutated Motor) available
• Rotary compressor (007-015), reciprocating compressor (018-042) and scroll compressor (048-070)
• Water loop (boiler/tower and ground loop/water) application use with operating temperature range of 50° to 100° F. Optional extended range package available with range of 25° F to 110° F.
• Fully insulated unit with acoustic type insulation
• Mute package available for quiet operation
• Complete C and Deluxe D controls available with DDC options
• Performance monitor equipped
• Copper or cupronickel heat exchanger
• MERV 8 and MERV 13 filters available
• Hot gas reheat and/or hot gas bypass available
• Waterside economizer available
• Electrical disconnect available
• Exceeds ASHRAE 90.1 performance requirements
• Rated in accordance with ARI/ISO 13256-1

Maintenance Features

• Three service panels for servicing compressor section
• All service may be done through large removable front or side panels
• Blower housing can be serviced without disconnecting ductwork
• Easy removal of control box for access to all refrigerant components
• Refrigerant circuit equipped with high/low pressure ports
• No tools required to change filters
• Standard 1-in. filter

Installation Features

• Compact footprint
• Units may be mounted in ceilings, closets, attics, etc.
• Ducted or free return connections
• All units pre-wired and factory charged with refrigerant
• Horizontal units include factory-installed hanger isolation brackets
• Water and condensate connections are FPT and secured to cabinet
• Single point electrical connection

Reliability Features

• Galvanized steel construction
• Stainless steel, coated, and insulated condensate pan
• Tin-Electro-Plated Copper Tubing /w Aluminum Fin coils available for corrosive environments
• Reversing valve (4-way), water-to-refrigerant coaxial coil, and enhanced aluminum fin/rifled copper tube air-to-refrigerant heat exchanger
• Microprocessor control with DDC (Direct Digital Controls) options
• UL and CSA certified

Standard Limited Warranty

• One year parts on all other parts
