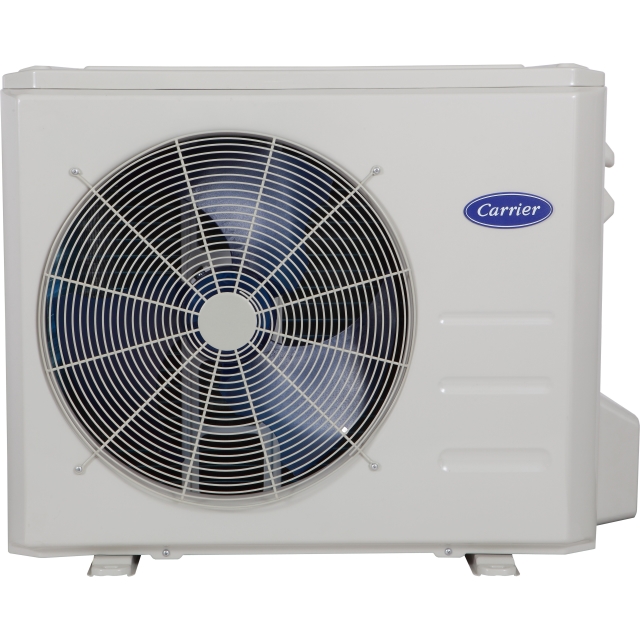

12K Outdoor Ductless HP Single Zone Comfort 115V R410A

38MHRQ12A--1 MFG #: 38MHRQ12A--1
  • URN 38MHRQ12A--1
  • Battery Backup No
  • Brand Carrier
  • Compressor Rotary Inverter
  • Cooling Capacity 12,000
  • COP 1.60 - 3.10
  • Cycle 60
  • Number of Zones 1
  • Unit Eer 10.8
  • Equipment Type Ductless Heat Pump
  • Family Comfort
  • Energy Star Rated No
  • Inverter Yes
  • Sound Blanket No
  • Heating Capacity 12000
  • Height 21.85 in
  • HSPF 9
  • Length 11.81 in
  • Liquid Line Size 1/4 in
  • Maximum Fuse Size 20 amp
  • Maximum Piping Drop 32 ft
  • Maximum Piping Length 82
  • Maximum Piping Lift 32 ft
  • Metering Device EEV
  • Minimum Ambient Temperature 0 °F
  • Minimum Circuit 13 amp
  • Minimum Piping Length 10
  • Motor Phase 1
  • Package Quantity 1 ea
  • Rated Load 9.5 amp
  • Refrigerant R410A
  • Unit Seer 16.8
  • Single-Zone Yes
  • Sound Level 53 dBA
  • Suction Line Size 3/8 in
  • Tonnage 1
  • Voltage 115
  • Weight 57.8 lb
  • Width 30.31 in
38MHRQ12A--1
38 = Outdoor Unit
MH = Model
R = Outdoor Unit
Q = Heat Pump
12 = 12,000 BTU
A = Single Zone
-- = Not Used
1 = 115V - 1 - 60

Standard Features

  • Inverter Driven Compressor
  • Low Sound Levels
  • Fast Installation
  • Built in self diagnostic system
  • Factory Installed Basepan Heater
  • Factory Installed Crankcase Heater
  • Auto-Restart Function
  • Condenser High Temp Protection
  • Refrigerant Leak Detection
  • Aluminum Golded Hydrophilic Pre-Coated Fins
