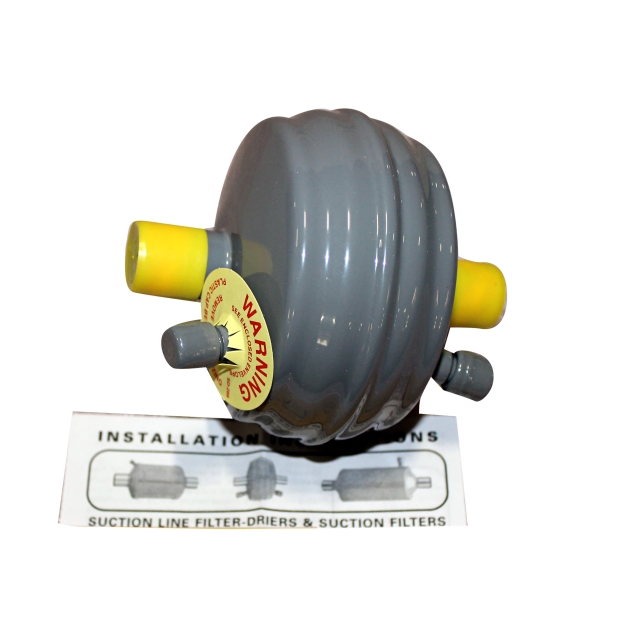

Short overall length, suitable for cramped piping situations shorter than other similar type filter-driers. Suitable for use on 1 through 5 ton air conditioning systems, with suction line sizes in the range of 1/29 to 1-1/89. Also applicable on the common suction line of heat pump systems. The famous Sporlan HH core removes all types of contaminants including moisture, acid, dirt, and sludge. A blend of two desiccants, plus activated charcoal, gives maximum performance. Access valves permit measuring the pressure drop across the filter-drier during clean-up, following a hermetic motor burnout.

Suitable for use on most air conditioning systems.
