CE C F/JW TERMOSTAT.EXP.VALVE
CE C F/JW TERMOSTAT.EXP.VALVE
Description

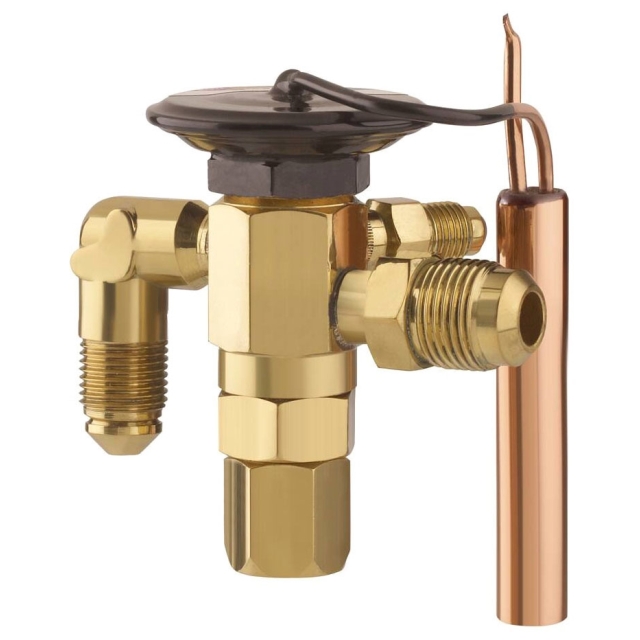

Parker Hannifin Corp. 3/8" x 1/2", SAE Male Flare x SAE Male Flare, R-134a, 450 PSI, Brass, Orifice C, Charge W, Interchangeable, 1/4" SAE Flare Externally Equalized, Thermostatic Expansion Valve with 60" Capillary Tube for 3 Ton Air Conditioning Unit/Refrigeration System
The Parker CE Series balance ported thermostatic expansion valves have a brass bar stock body with flare or sweat connections, adjustable superheat, long lasting replaceable power element and accessible internal parts. Each valve is factory tested to ensure positive leak-free performance. The balance port design provides perfect pin and port alignment and prevents pressure drop across the valve from influencing valve operation.
Features & Benefits
- Stainless Steel Power Element
- Low Pressure Drop Internal Check Valve
Specifications
- Type: Automatic, Balanced Port
- Nominal Size: 3/8 Inch x 1/2 Inch
- End Connection: ODF x ODF
- Temperature Rating: -40 to 60 Deg F
- Pressure Rating: 450 PSI
- Inclusions/Features: 1/4 Inch SAE Flare Nut External Equalizer, Internal Check Valve
- Application: Air Conditioner and Heat Pump System Capillary Tube Length 30 Inch; Refrigerant Type R-22/R-407C; Refrigerant Color Green/Medium Brown; Capacity 3 Ton; Charge Code Maximum Operating Pressure, Pressure Limiting
Specifications
- BrandFactory Authorized Part
- Shipping Height5 in
- Shipping Length4 in
- Shipping Weight1 lb
- Shipping Width3 in
