COMPRESSOR
COMPRESSOR
Description

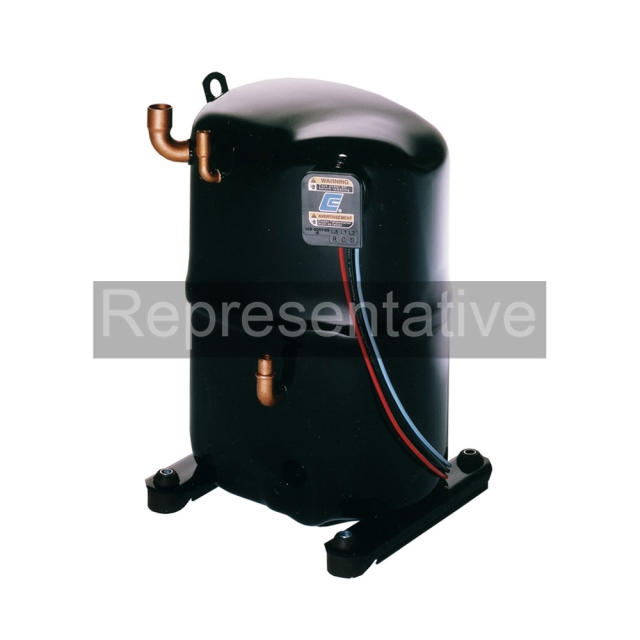

CR24KQTF5980WB
C = Hermetic Reciprocating Compressor
R = R22/R407C, High Temp A/C, H/P
24K = 24000 BTU
Q = Quiet Model
T = Three Phase
F = Internal Inherent Protection, One Protector, use with contactor
5 = 200/240-3-50 / 200/230-3-60
980 = Bill of Material Product Variation
WB = Accessory Option Code
C = Hermetic Reciprocating Compressor
R = R22/R407C, High Temp A/C, H/P
24K = 24000 BTU
Q = Quiet Model
T = Three Phase
F = Internal Inherent Protection, One Protector, use with contactor
5 = 200/240-3-50 / 200/230-3-60
980 = Bill of Material Product Variation
WB = Accessory Option Code
Standard Features
- Rugged reciprocating technology
- Superior efficiency
- Best suited for 55°C high ambient conditions
- Strong liquid handling capability
- Industry leading reliability
- Multiple foot mounting configuration
- UL and IECEE certified
Specifications
- BrandCopeland
- ApplicationAC/HP Duty, High Temperature
- Capacity23300
- Line Voltage (60Hz)240V
- Rated Voltage (60Hz)208/230
- RefrigerantR22
- Refrigerant Oil TypeMineral Oil (MO)
- Suction Line Size5/8"
- Variety TypeReciprocating
- ApplicationAC/HP
- Compressor Capacity24000 btu
- Frequency50Hz, 60Hz
- Height13.4 in
- Liquid Line Size3/8 U 3.50 in
- Max RLA7.5
- Motor Phase3
- Run CapacitorN/A
- Shipping Height17 in
- Shipping Length14.5 in
- Shipping Point37406
- Shipping Weight62 lb
- Shipping Width14.75 in
- TechnologyRecip
- TypeHerm
- Voltage208/230
