Description

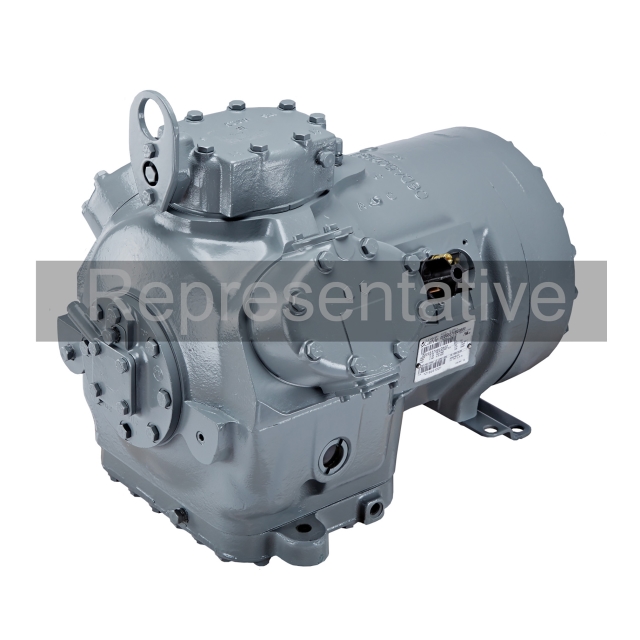

06DA8252B1325A
06DA = Compressor - A/C Duty (No Unloading)
8 = Motor Size
25 = Displacement in CFM at 1750 RPM
2 = New OEM Compressor (Carrier)
B = Motor End Suction Service Valve, 4-Bolt, 30D
1 = 115/240V Control Voltage, Electronic Overcurrent Protection
32 = 208/230-3-60
5 = No Oil
A = HFC Package - Single Pack Domestic w/o Valves or Oil
06DA = Compressor - A/C Duty (No Unloading)
8 = Motor Size
25 = Displacement in CFM at 1750 RPM
2 = New OEM Compressor (Carrier)
B = Motor End Suction Service Valve, 4-Bolt, 30D
1 = 115/240V Control Voltage, Electronic Overcurrent Protection
32 = 208/230-3-60
5 = No Oil
A = HFC Package - Single Pack Domestic w/o Valves or Oil
Standard Features
- High-flow, automatically reversible oil pump provides positive-displacement oil lubrication.
- Crankcase venting system equalizes pressure during startup and assures oil return to sump.
- Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts.
- Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency.
- High-efficiency valves provide increased refrigerant flow and lower pressure drops.
- Electronic oil-pressure switch.
Specifications
- BrandCarlyle
- ApplicationAC Duty
- CFM Displacement25
- Cylinders6
- DesignNew
- RefrigerantR134A, R22, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R500, R502, R507, R513A
- Unloading StepsNo Unloading
- Unloading TypeNo Unloading
- Variety Type06D/6D - Reciprocating
- Voltage208/230
- Frequency50/60
- LRA198
- Max RLA35.6
- Motor Phase3
- Shipping Height16 in
- Shipping Length24 in
- Shipping Weight315 lb
- Shipping Width18 in
